Joomla Modal Boxes (Inbuilt and 3rd Party Extensions)

Written by

Joomla modals are tricky. There is inbuilt support for squeezebox modals in joomla, but instructions on how to use them are limited. I have explored the inbuilt support and also the major 3rd party modal extensions.

  • All the 3rd party addons accept the use of links, internal and external, and so does Squeezebox
  • Using links for modals rather than module is better because when you load modules in to the content, for this code to be used in a modal box, the code is copied into the modal box so you then get the issues of duplicate IDs, display of the code twice and some other issues. This is the case for Squeeze box but not verfied for the 3rd party extensions.






Creating Joomla Links (component/pages/articles)

This will be very handy whether you use an extension or Joomla's inbuilt library. I will outline how to get the non-sef links for use in your modal box code and some other link information. These links can be used by any of the methods outlined below.

Notes before Starting

  • &tmpl=component - when added to the end of the called URL this removes most of the template from the Joomla page loaded but leaves the component alone. This is very useful and you will probably use it on most component links
  • &tmpl=modal - when added to the end of the called URL this removes all of the template and CSS styling from the Joomla page loaded but leaves the basic component. This is a real parameter but I cannot find and further information on it.
  • Linking to a component via Menu Item or directly is much better than loading a module in your code if you required interation
  • The only difference between the Non-SEF link found in the Menu Items 'Details Tab' in the Joomla admin agaist that in the frontend is that the frontend Non-SEF URL will have the Menu Item ID added (i.e. &Itemid=167)
  • iframe  - Is most likely needed when using interactive forms so the data is submitted correctly and redirects happen as they should.  You should remember that when you load module code into an article it becomes part of that page but the modal box is probably outside of the DOM and this can cause reference issues hence iframes. This is definately true when using Joomlashine Uniform, the forms will not work properly if you do not load using an iframe. To use an iframe you must use a link pointing to a page and therefore you cannot use a module for this.

Component URLs via Menu Items which can be configured in the Menu Item Config
This is very handy if you need a menu item to configure options and is also the qucikest way of creating a link. If you use a menu item for your link then you can have and use SEF URLs. Most menu items point to a component. These links might get indexed so you need to add exceptions to your site maps to prevent this.

  • Create a menu item in a hidden menu (if you want it hidden), configure the options you want for that link and click save.
    • Temporaily make the hidden menu visible and without Joomla's URL re-writing turned on in Global setings, browse to your newly created link and copy the URL. You can now use this link in your modal box link. When you turn URL rewriting back on the link in the menu and the modal box link will be parsed to a SEF URL and this will still work when you hide your hidden menu again.
  • You can also use the link builders in most WYSIWYG to make a link to that menu item

Component Standalone URLs
These links will link to components but only have the options that are passed to it via the non-sef url. I think unless you add any rules to convert these links to SEF in a program shuch as SH404SEF then they will stay as NON-SEF. These links might get indexed so you need to add exceptions to your site maps to prevent this.

  1. Temporarily create a menu item to the item you want, configure the options you want for that link and click save.
    • You can now copy the URL created on the 'Details Tab' labelled link in the menu item's admin page
      or
    • Without Joomla's URL re-writing turned on in Global setings, browse to your newly created link and copy the URL. You can now use this link in your modal box link but you should removed the &Itemid=167 if present from the end of the URL as this is the reference to the menu item and it is not longer needed.
  2. Now you can delete the menu item. When you turn URL rewriting back on the link in the menu and the modal box link most likely will NOT be parsed to a SEF URL and will only keep the options that are set in the URL itself via GET.






Bootstrap Modal Library - Joomla Inbuilt Modal Boxes (J3.x+)

  • This method for creating modals re-uses the code, it does not copy. What this means there is no duplicate code created with duplicate IDs that the browser must remove allowing for the full use of joomla modules that have unique IDs

This is now the prefered method to create modals in Joomla 3.x+ but requires Twitter Bootstrap Libraries. Most modern templates are based on Bootstrap in some fashion so have these libraries turned on. The implementation from what i can read is exactly the same as if you were working on a straing Bootstrap website.

Bootstrap Modals Examined without Joomla

It is probably helpful to look at Bootstrap modals without Joomla getting in the way as there are lots of examples already out there and as mention they called the same way.

Enable Bootstrap in Joomla

If your Joomla does not have bootstrap avaiable you need to do one of the following to enable it

  • enable it in php
  • enable it in your template by the config options
  • install a Bootstrap template and use that

The bare minimum code to create a modal in Joomla

This assumes that Bootstrap is enabled.

<a href="#" class="btn" data-target="#myModal" data-toggle="modal">Launch First</a>

<div id="myModal" class="modal fade hide" tabindex="-1">
    Add your Payload here
</div>

Example - Load Joomla Standard Login Form in a Modal

The following example will get the Standard Joomla Login Module displayed in a modal box when a button is pressed. You can add in the missing parts of the modal template if you want or style with CSS as I have done.

  1. Enable Bootstrap (if not already)
  2. Create a Login Module and publish it with your required settings. Do not set a position.
  3. Open up any article and use the Module button to insert the Login Module loadmodule code. Do this by selecting the Login Module by name and NOT position. Copy this code for later if required.
  4. Make sure the loadmodule plugin is enabled. I do not know what it is called
  5. Create a Custom Module with Prepare Content enabled
  6. Insert the following code, changing [loadmodule mod_login,Login Form] if required
    <!-- Button to trigger Bootstrap Modal Box -->
    <p>
        <a href="#" class="btn" data-target="#myModal" data-toggle="modal">Launch First</a>
    </p>

    <!-- Bootstrap Modal Box Payload Container -->
    <div id="myModal" class="modal fade hide" style="max-width: 300px; padding: 10px;" tabindex="-1">
        <button type="button" class="close" data-dismiss="modal" aria-hidden="true">×</button>
        [loadmodule mod_login,Login Form]
    </div>
    NB: Swap [] for {} - I changed this to prevent the login form getting rendered here

  7. Publish to a position and all required pages, then save
  8. Done

Trigger from a menu (Optional)

  • remove the button code and follow the instructions below to trigger from a Joomla Menu item

Trigger a Modal from a Joomla Menu Item

  • data-toggle="modal" and other attributes cannot be added in joomla with it's GUI - you need to use javascript to add this attribute to the menu link (check this is an issue raised at joomla, j3.7 might have this)
  • so to add a menu modal activation i will need to use javascript
  • cannot add data-target="#myModal" data-toggle="modal" into a joomla menu item thorught he GUI, is phpmyadmin a way

Solutions

  • edit menu item via phpMyAdmin
  • use javascript to add attributes
Joomla Menu Link Title Attribute Hack

This currently only works when the menu is rendered through a gantry menu

This little hack allows you to inject custom attributes into a link without any code modifications and you can have it with or without a title. It causes a small validation issue on your link html but only if you go looking for it will you find any issue other than the browser has corrected it for you.

  1. Create an External URL menu item as normal with # as the target
  2. Edit the Link Title Attribute filed and add the following code (alter as needed)
    Title Goes Here" data-target="#myModal" data-toggle="modal" "

Improved variations with no errors

This code is slightly modifed and does not cause any html errors. There are 2 x quotes removed which are duly addced back in by joomla when it parses this code. It might reduce compatability but I have nothing to test this againt

Custom Title" data-target="#myModal" data-toggle="modal

Notes

  • Leave the spaces after the first " and before the last " this is intentional so there is no compatability issues with other things added to the link (i.e. concatenation)
  • If you do not want a title just remove it and make sure there are no spaces at the begining
  • There should be no space between the end of the title and the first " unless you want a space at the end of the Title
  • This allows you to add any custom tags with or with a title
  • This does add 1 set of empty "" at the end of the link statement but this will not cause any problems
  • adding rel="nofollow" to joomla menu item - Joomla! - I got the solution from a Joomla user egonzalez . There are also instructions on what core code to edit if you really wanted to.
Add custom attributes by Javascript

I have not used this method but the principle is simple. Execute some Javascript that appends custom attributes onto the identified link.

Instructions

  1. Create an External URL menu item as normal with # as the target and a Link CSS Style of addModalAttributes
  2. add this code in your custom module that has your modal code
    <script type="text/javascript">
       (function($){
            $(document).ready(function() {
                $('.addModalAttributes').attr('data-target', '#myModal');
                $('.addModalAttributes').attr('data-toggle', 'modal');
            });
        })(jQuery);
    </script>

This will now usie javascript and add the missing attibutes to all elements that have the class addModalAttributes , I assume you will only have the one item with this class. You can always change the class if there are conflicts.

The complete code will look like

<script type="text/javascript">
   (function($){
        $(document).ready(function() {
            $('.addModalAttributes').attr('data-target', '#myModal');
            $('.addModalAttributes').attr('data-toggle', 'modal');
        });
    })(jQuery);
</script>

<div id="myModal" class="modal fade hide" style="max-width: 300px; padding: 10px;" tabindex="-1">
    <button type="button" class="close" data-dismiss="modal">×</button>
    [loadmodule mod_login,Login Form]
</div>

NB: swap [] for {}

Also you can use other selectors such as

$('.g-social > a:first').attr('data-target', '#myModal');
$('.g-social > a:first').attr('data-toggle', 'modal');

Links

Edit Menu Item via phpMyAdmin

The menu item attributes are stored in the database @ #__menu --> params

The primary example used above generates this code.

{"menu-anchor_title":"Custom Title\" data-target=\"#myModal\" data-toggle=\"modal\" \"","menu-anchor_css":"","menu-anchor_rel":"","menu_image":"","menu_text":1,"menu_show":1}

This generates the following code:

Joomla menu

<a href="#" title="Custom Title&quot; data-target=&quot;#myModal&quot; data-toggle=&quot;modal&quot; &quot;" >Modal Test</a>

Gantry Menu

<a class="g-menu-item-container" href="#" title="Custom Title" data-target="#myModal" data-toggle="modal" "">

You can alter the code to remove the double quote issue, that code wold look like (Improved Variation). As you can see I have removed 2 x quotes. This generates the following code (your output might be slightly different)

{"menu-anchor_title":"Custom Title\" data-target=\"#myModal\" data-toggle=\"modal","menu-anchor_css":"","menu-anchor_rel":"","menu_image":"","menu_text":1,"menu_show":1}

This generates the following code:

Joomla Menu

<a href="#" title="Custom Title&quot; data-target=&quot;#myModal&quot; data-toggle=&quot;modal" >Modal Test</a>

Gantry Menu

<a class="g-menu-item-container" href="#" title="Custom Title" data-target="#myModal" data-toggle="modal">

Modal Menu Links

Bootstrap Modal Notes

  • bootstrap uses a html template that can be styled with CSS inline or by a CSS file
  • extra bootstrap templateing ie modal-header, modal-body, modal-footer are optional
  • it is responsive by default
  • The href="" call does not allow you to use external URLs. They do not work because of a same origin policy?

Bootstrap Modal Links

Joomla Implementations

Bootstrap Implementations




Squeezebox - Joomla Inbuilt Modal Boxes (Legacy)

  • When using Squeezebox: Browsers remove duplicate IDs, so if you use IDs in your source code (what you want in the modal), such as the login module, then when the code is copied by Squeezebox your browser will remove the duplicate IDs from the code in the modal windows and styling WILL be affect and possibly functionality if it depends on IDs. See Case study below.

Before starting it is important to know that you need to copy the following code into your php/Extension/Template to enable the modal library. Most people put this in the templates index.php, but this will load the library throught the site however is good for quick testing.

// Enable Squeezebox
JHTML::_('behavior.modal');

If you are using a suitable template, any from Joomlashine, there might be an option to turn this feature on in the template rather that manually adding the code yourself.

Extensions --> Templates --> [Your JSN Template] --> SEO & System Tab --> Enable SqueezeBox

When this library is enabled a CSS and javascript file are loaded into the header.

<link rel="stylesheet" href="/media/system/css/modal.css" type="text/css" />
<script src="/media/system/js/modal.js" type="text/javascript"></script>

The CSS might be overidden in your template if that is how it was designed but is not mandatory or you can make your own alterations if needed.

Simple Link Examples

Load an image in a modal box

<a href="http://www.example.com/images/myimage.jpg" class="modal">Click here to see my image</a>

This will display an image in a modal box when clicked. You can add other styling to it if needed i.e. Joomlashine link class or button class. You dont need to put it in an iFrame.

Load an image in a modal box of fixed size

<a href="http://www.example.com/images/myimage.jpg" rel="{size: {x: 200, y: 100}}" class="modal">Click here to see my image</a>

I have defined a fixed size for the modal box using the rel="{size: {x: 200, y: 100}}" - There are more switches you can use here.

Load a Module via a simple link

When a module has interaction you might find that it does not work as expected. The easiest way around this is to load the module in to an article/page and then load the page in to the modal box without any styling, this allows you to load any module and have it work correctly such as forms.

  1. Create a page
  2. Add the module via {loadmodule} plugin (or any other method you prefer) into that page
  3. Create a menu item for that page using the hidden page method (a menu that is not published to a module)
  4. Call the page via the pages URL and add the following on the end of the URL,  &tmpl=component

You now have a working and interactive module in a modal box.

Initiate a Modal Box from a Menu Item

This can be used to use a menu item to open a modal box so you ar enot stuck to using a link in content. the methos is really easy.

  1. Get the ID of the modal div you want to load (i.e. #modal-login-form )
  2. Create a External URL menu item with the following:
    • URL = #modal-login-form
    • Link CSS Style = modal
  3. Make sure this link is present on the page with the modal and it will trigger it when clicked.

Split DOM (button and separate code block)

Create a modal box with standard content

  1. Add this code in your article where you want it. It does not really matter where you put this code because it will be hidden. Replace "Modal Content Here" with your content that you want in your modal which can be text or HTML, there are no restrictions except the standard Joomla ones. The id="testmodal" must be unique and you can have as many as you want so you can create multiple modal boxes on the same page. There is a wrapper DIV because you need to hide the code in the main page but the child code that is grabbed needs to be visible.
    <div style="display: none;">
        <div id="testmodal">Modal Content Goes Here</div>
    </div>

    NB: The style="display: none;" hides the original code to prevent duplication and this is important because that the display:none is on a parent div other wise the content grabbed will be set to display:none

  2. Add the activator link/button making sure that href="#testmodal" matches the unique value of your modal code bloack that you want to activate.
    <a href="#testmodal" class="modal">Testmodal Button</a>
  3. If you are adding this into a module you need to make sure you enable the "Prepare Content" option
  4. Done

Load a module in a modal box

To go one step further and load a module instead of code already in the content, you just need to load your module into the modal content block via a plugin.

Follow the instructions above but replace the inner line of the modal code block

<div id="testmodal">Modal Content Goes Here</div>

with any of the following or similiar plugin calls:

<div id="testmodal">[loadposition]</div>
<div id="testmodal">[loadmodule]</div>
<div id="testmodal">[module Some module]</div>
<div id="testmodal">[module 27]</div>
<div id="testmodal">[modulepos position-7]</div>

NB: Swap [] for {} - I used brackets instead of curly braces so Joomla did not parse the demo text.

Enforce an Iframe

<a href="http://www.example.com/images/myimage.jpg" rel="{handler:'iframe'}" class="modal">Click here to see my image</a>

or

<a href="#testmodal" rel="{handler:'iframe'}" class="modal">Testmodal Button</a>

Adding rel="{handler:'iframe'}" to the activator/button code enforces an iframe. Squeezebox usually can intelligently select this but sometimes needs a hand.

Close the Squeezebox

The modal box in Joomla is usually rendered with a close button at the top right but if you want to create your own close button in the content, then use the following javascript code in your content.

<!-- Close the Squeezebox using Text -->
<a href="#" onclick="window.parent.SqueezeBox.close()">Close Modal></a>

<!-- Close the Squeezebox using an image -->
<a href="#" onclick="window.parent.SqueezeBox.close()"><img src="/images/modules/enter-website-button.jpg" alt="" /></a>

<!-- Close the Squeezebox using a cross from Font Awesome -->
<a href="#" onclick="window.parent.SqueezeBox.close()"><img src="/images/modules/enter-website-button.jpg" alt="" /></a>

You can see the onclick="window.parent.SqueezeBox.close() , this says to the parent close its child modal.

Other modal box close codes

I have not tried these variations:

<a href="javascript:splashpage.closeit()">link</a>

<a href="#" onclick="window.parent.splashpage.closeit();return false;">link</a>

<a href="#" onclick="window.parent.splashpage.closeit();"><img alt="" src="/images/modules/enter-website-button.jpg" /></a>

<a href="#" onclick="window.parent.SqueezeBox.closeit();"><img alt="" src="/images/modules/enter-website-button.jpg" /></a>

These definitely work:

parent.SqueezeBox.close();
windows.parent.SqueezeBox.close();

parent.jModalClose();
window.parent.jModalClose();

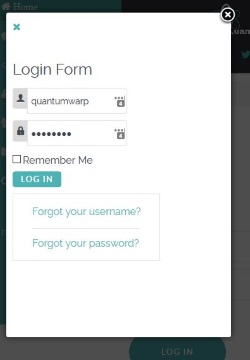

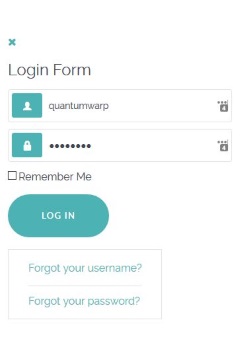

Squeezebox - CSS Styling is missing (Case Study)

This baffled me for a while so I will just show you a quick case of when I wanted to display the Login Module in a modal and all of the styling was missing.

In the modal box with no styling / How it should look

Login Box in Modal Box with no styling Login Box with styling

Scenario

I want to display the native Joomla Login Module in a Squeezebox Modal Box.

Cause

  • The reason the modal login form is not styled is because the form is missing id="login-form" in the modal. Adding it via Firebug makes the form look correct but it is not a permanent solution.
  • When code is copied from the donour location by Squeezebox (it is not re-used) and then rendered by the browser, the browser strips the second instance of id="login-form" from the code in the modal code to keep the IDs unique.
  • The removal of the ID causes the styling not to work (I was using Gantry5 with the Helium Template). This will most likely be the same for a lot of modules that employe IDs for reference in the CSS.

Solution

  • Use CSS classes and not IDs
  • Possibly use Bootstrap Modal code instead of Squeezebox
  • Use Modal Extensions mentioned here
  • Use a Login Module that has been prebuilt to appear in a Modal (from https://extensions.joomla.org/ )
  • Alter the modal wrapper and the get the login form CSS from the main template and alter it so it works.
    • search the template CSS files for all instances of #login-form and copy the code into 1 file
      /* Gantry Login Form CSS */
      /* Taken from /templates/g5_helium/custom/css-compiled/helium-joomla_13.css */

      /* line 1, templates/g5_helium/scss/helium-joomla/styles/_core.scss */
      .edit.item-page .btn-toolbar .btn, .pager.pagenav a, .moduletable #login-form .control-group .btn, p.readmore .btn, .contact .form-actions .btn, #contact-form .controls .btn-primary.validate, .profile .btn, .login .btn, .logout .btn, .registration .btn, .profile-edit .btn, .remind .btn, .reset .btn, .search #searchForm .btn, .finder #searchForm .btn, .search #search-form .btn, .finder #search-form .btn {
        display: inline-block;
        font-family: "Lato", "Helvetica", "Tahoma", "Geneva", "Arial", sans-serif;
        font-weight: 600;
        font-size: 0.8rem;
        line-height: 1.15;
        letter-spacing: 0.1rem;
        text-transform: uppercase;
        background: #4db2b3;
        color: #fff;
        border: 1px solid transparent;
        border-radius: 2.5rem;
        margin: 0 0 0.5rem 0;
        padding: 1.5rem 3.125rem;
        vertical-align: middle;
        text-shadow: none;
        -webkit-transition: all 0.2s;
        -moz-transition: all 0.2s;
        transition: all 0.2s;
      }
      /* line 19, templates/g5_helium/scss/helium-joomla/styles/_core.scss */
      .edit.item-page .btn-toolbar .btn:hover, .pager.pagenav a:hover, .moduletable #login-form .control-group .btn:hover, p.readmore .btn:hover, .contact .form-actions .btn:hover, #contact-form .controls .btn-primary.validate:hover, .profile .btn:hover, .login .btn:hover, .logout .btn:hover, .registration .btn:hover, .profile-edit .btn:hover, .remind .btn:hover, .reset .btn:hover, .search #searchForm .btn:hover, .finder #searchForm .btn:hover, .search #search-form .btn:hover, .finder #search-form .btn:hover, .edit.item-page .btn-toolbar .btn:active, .pager.pagenav a:active, .moduletable #login-form .control-group .btn:active, p.readmore .btn:active, .contact .form-actions .btn:active, #contact-form .controls .btn-primary.validate:active, .profile .btn:active, .login .btn:active, .logout .btn:active, .registration .btn:active, .profile-edit .btn:active, .remind .btn:active, .reset .btn:active, .search #searchForm .btn:active, .finder #searchForm .btn:active, .search #search-form .btn:active, .finder #search-form .btn:active, .edit.item-page .btn-toolbar .btn:focus, .pager.pagenav a:focus, .moduletable #login-form .control-group .btn:focus, p.readmore .btn:focus, .contact .form-actions .btn:focus, #contact-form .controls .btn-primary.validate:focus, .profile .btn:focus, .login .btn:focus, .logout .btn:focus, .registration .btn:focus, .profile-edit .btn:focus, .remind .btn:focus, .reset .btn:focus, .search #searchForm .btn:focus, .finder #searchForm .btn:focus, .search #search-form .btn:focus, .finder #search-form .btn:focus {
        background: #3d8f90;
        color: #fff;
      }

      /* line 101, templates/g5_helium/scss/helium-joomla/styles/_modules.scss */
      /* line 102, templates/g5_helium/scss/helium-joomla/styles/_modules.scss */
      .moduletable #login-form .control-group {
        margin-bottom: 10px;
      }
      /* line 105, templates/g5_helium/scss/helium-joomla/styles/_modules.scss */
      /* line 106, templates/g5_helium/scss/helium-joomla/styles/_modules.scss */
      .moduletable #login-form .control-group .input-prepend .add-on {
        color: #fff;
        background: none;
        padding: 5px;
      }
      /* line 111, templates/g5_helium/scss/helium-joomla/styles/_modules.scss */
      .moduletable #login-form .control-group .input-prepend .add-on [class^="icon-"], .moduletable #login-form .control-group .input-prepend .add-on [class*=" icon-"] {
        width: auto;
        background: #4db2b3;
        padding: 0.45rem 1rem;
        border-radius: 3px;
      }
      /* line 119, templates/g5_helium/scss/helium-joomla/styles/_modules.scss */
      .moduletable #login-form .control-group .input-prepend input {
        border-left: none;
      }
      /* line 122, templates/g5_helium/scss/helium-joomla/styles/_modules.scss */
      .moduletable #login-form .control-group .input-prepend input:hover {
        border-color: #e0e0e5;
      }
      /* line 126, templates/g5_helium/scss/helium-joomla/styles/_modules.scss */
      .moduletable #login-form .control-group .input-prepend input:focus {
        box-shadow: none;
        border-color: #e0e0e5;
      }
      /* line 130, templates/g5_helium/scss/helium-joomla/styles/_forms.scss */
      #login-form .input-prepend .input-small, #login-form .input-append .input-small {
        width: 80%;
      }
      /* line 135, templates/g5_helium/scss/helium-joomla/styles/_forms.scss */
      #login-form #modlgn-secretkey {
        width: 65%;
      }
    • in the new code remove all instances of #login-form
    • on the begining of each CSS reference add the class .modal-login-form
    • add another div into your modal wrapper with the class .modal-login-form
    • Should give something like
      <!-- Login Form Modal Wrapper -->
      <div style="display: none;">
          <div id="login-modal">
              <div class="modal-login-form">
                  [loadmodule mod_login,Login Form]
              </div>
          </div>
      </div>

      NB: {} swapped for [] to prevent Joomla rendering the Login Module here

    • Make sure the Joomla Module loading plugin is enabled
    • Add this code to a custom module and publish

Joomlashine Uniform in a Modal Box (Squeezebox Example)

  • To get a form to work properly in a modal box you must load the form via a component URL and in an iframe. You must also make sure you append the &tmpl=component to the end of the url to remove all the unwanted template. Use the notes above to get the appropriate URL for your form.
  • If you dont load the form via a component URL in an iframe you will get some of the following errors:
    • Email gets sent on clicking the submit button but the whole page redirects to a white page
    • Only the Submit button appears but with no fields

Uniform Component Form example URL

index.php?option=com_uniform&view=form&form_id=2&show_form_title=0&show_form_description=0

This is what a basic link that you have aquired out of the Menu Item config page

index.php?option=com_uniform&view=form&form_id=2&show_form_title=0&show_form_description=0&Itemid=207

Here you can see the addition of the &Itemid=207 showing that you are linnking to a menu item, which of course is optional.

Uniform Joomla Squeezebox Component Form example URL

<a h ref="index.php?option=com_uniform&view=form&form_id=2&show_form_title=0&show_form_description=0&Itemid=207&tmpl=component" rel="{handler:'iframe'}" class="modal">Uniform Modal Link</a>
  • In this example you can see i have added rel="{handler:'iframe'}" which forces the modal to load the code in an iFrame and that it is linked to an actual menu item. You can just delete &Itemid=207 which will remove the link to the Menu Item if required.
  • The link above gets altered by Joomla parsing the links so change h ref (notice the space) to href if you want the full link

Uniform RokBox Component Form example URL

<a h ref="index.php?option=com_uniform&view=form&form_id=2&show_form_title=0&show_form_description=0&Itemid=207&tmpl=component" data-rokbox="">Uniform Modal Link</a>
  • You can just delete &Itemid=207 which will remove the link to the Menu Item if required
  • The link above gets altered by Joomla parsing the links so change h ref (notice the space) to href if you want the full link

Uniform NoNumber Component Form example URL

[modal index.php?option=com_uniform&view=form&form_id=2&show_form_title=0&show_form_description=0&Itemid=207&tmpl=component|iframe=true]Uniform Modal Link[/modal]

NB: Swap [] for {} - I used brackets instead of curly braces so Joomla did not parse the demo text.
  • You can just delete &Itemid=207 which will remove the link to the Menu Item if required

Uniform Links

Squeezebox Notes

  • The modal box will fill out appropriately to the screen size but when it is opened it is a fixed size whether you define it or not. You can use JQuery to make the modal box completely dynamic but is little more involved. So for most responsive platforms this will be ok because most people do not go and resize their screen to try and break responsive websites.
  • Might be better picking a position you already have modules already present (in gantry and other templates) otherwise this hidden code can cause a position or section to be displayed and appear to have no content.
  • There seems also to be a maximum size set for the different screen sizes. This might be tempalte specific
  • Creates scroll bars because there is a maximum height set somewhere
  • The link seems to float to the top of the page when you go to mobile browser width. This might be an issue with my template and can fixed with CSS
  • Fixing the modal button/link going out of position in smaller browser widths. This is cause by line 14 in bootstrap-responsive-frontend.min.css
    • JoomlaShine Support Forum: Modalbox in module-postion (1/3) - this thread gives a solution to the modal box button going out of position. This works
      @media (max-width: 767px) {
      .modal {
      	position: inherit !important;
      	}
      }
    • My solution
      .modal {
      	position: relative;
      	top: intial;
      	left: intial;
      	right: intial;
      	width: intial;
      	margin: 0px;
      }

      this is also probably valid

      .modal {
      	position: relative;
      	top: 0px;
      	left: 0px;
      	right: 0px;
      	width: intial;
      	margin: 0px;
      }

Squeezebox Links






3rd Party Modal Extensions

  • Joomla Inbuilt Modal - Squeezebox - This is an inbuilt feature/library of Joomla and can be enabled in Joomlashine Templates easily.
  • RokBox - Joomla! Extension Directory - RokBox is a fully responsive modal "pop-up" plug-in for the Joomla CMS. This very popular extension can showcase many different media formats such as images, videos, music, embedded widgets, Ajax content, and Joomla modules, all from a three-dimensional display. It also takes advantage of new technologies such as HTML5/CSS3. Fully feature modal extension with an editor button and nice animations.
  • NoNumber Modals - Joomla! Extension Directory - Free and Pro versions available. The free version is excellent and this extension allows you to directly convert any menu item into a modal box by adding [modal] tags in the menu's item name
  • JoomlaXTC Modal Box - Joomla! Extension Directory - Create light box links with this simple Modal Box plugin. This plugin replaces your normal a href call with the modal call to open the content with a mootools lightbox effect.
  • Any Module Modal Box | Webkul - Joomla! Extension Directory - This is a paid module that simple allows you to load a module via a {tag} in your articles or modules.
  • JCE MediaBox - Joomla! Extension Directory - This is a  JCE Editor extensionand is made up of 2 parts. The first part is the extra functionality it adds to the editor, when creating links there is an extra Tab called Modal/Pop-UP where you can configure your modal options and then upon save adds the correct syntax to your content. It has lots of options and supports YouTube. The second paet of the extension is a Joomla system plugin to parse the code and create the Modals

Modal Splash Extensions





RokBox Extension

Simple Link

With Rokox you get an editor button that can perform most of the link building for you. You can either just highlight the code in the editor and press the RokBox Editor button or you can create a link from scratch by just clicking the RokBox editor button.  Only the link field is mandatory in the RokBok link builder button but if creating a link from scratch it is probably wise to fill in the content title other wise it uses the details from the link field.

The modal box will fill out appropriately to the screen size and is completely responsive unless you set a fixed size.

Load an image in a modal box

<a href="http://www.example.com/images/myimage.jpg" data-rokbox="">Click here to see my image</a>

This will display an image in a modal box when clicked. You can add other styling to it if needed i.e. Joomlashine link class or button class. You dont need to put it in an iFrame.

Load an image in a modal box of fixed size

<a href="http://www.example.com/images/myimage.jpg" data-rokbox="" data-rokbox-size="210 213">Click here to see my image</a>

I have defined a fixed size for the modal box using the data-rokbox-size="210 213" where 210 is the width and 313 is the height of the popup image. You can alternatively use data-rokbox-size="210 100%" as this will enable automatic height for a box 210px wide. you can also use percentages.

There are more switches you can use here.

Split DOM (button and seperate code block)

When using the DOM method you need to configure the code you want to be turned in to a modal box and also define a link/href after this code that will act as an activation button. Rokbox for some reason clones the code and uses this in the modal box which can causes several issues, duplication of unique values, incorrect DOM referneces, duplication of code on the page, styling issues, page redirection etc... If you want to load a module into an article and then have it become a modal box you need to load it with your prefered in-content loading plugin and then surround it's {tags} with a unique DIV so that you can reference it in the button/href activator for the modal box. Rokbox does not seem to offer a direct module loading ability. The modal code block and the activate button/href are seperate on purpose so that the button comes after the code. The modal code block is converted when the href/link is parsed. Using this method also allows the [loadposition], [loadmodule] etc.. tags to be converted into real code before the modal boc is created. Rokbox is responsive.

Create a modal box with standard content

  1. Add this code in your article where you want it. It does not really matter where you put this code because it will be hidden. Replace "Modal Content Here" with your content that you want in your modal which can be text or HTML, there are no restrictions except the standard Joomla ones. The id="testmodal" must be unique and you can have as many as you want so you can create multiple modal boxes on the same page.
    <div id="testmodal" style="display: none;">Modal Content Goes Here</div>

    NB: The style="display: none;" hides the original code to prevent duplication

  2. Add the activator link/button making sure that data-rokbox-element="#testmodal" matches the unique value of your modal code bloack that you want to activate.
    <a href="#" data-rokbox="" data-rokbox-element="#testmodal">Testmodal Button</a>
  3. If you are adding this into a module you need to make sure you enable the "Prepare Content" option
  4. Done

Load a module in a modal box

To go one step further and load a module instead of code already in the content, you just need to load your module into the modal content block via a plugin.

Follow the instructions above but replace the modal code block

<div id="testmodal" style="display: none;">Modal Content Goes Here</div>

with any of the following or similiar plugin calls:

<div id="testmodal" style="display: none;">[loadposition]</div>
<div id="testmodal" style="display: none;">[loadmodule]</div>
<div id="testmodal" style="display: none;">[module Some module]</div>
<div id="testmodal" style="display: none;">[module 27]</div>
<div id="testmodal" style="display: none;">[modulepos position-7]</div>

NB: Swap [] for {} - I used brackets instead of curly braces so Joomla did not parse the demo text.

Enforce an Iframe

Thre are no particular switches that enforces and iframe, RokBox automatically selects it if required.

RokBox Links





NoNumber Modals

There are Free and Pro flavours but for for most people the Free version will be fine. NoNumber Modals is also feature rich, not only does it do standard modal things but:

  • Open menu items in modals- This is  a cool little feature where you can surroung the mneu item's title (in the menu item config) with these tags and the extension will convert the menu item's output directly to a modal box.
  • Youtube - can easy modal youtube videos
  • Quick link to an article - no hassle enclose a joomla article in a modal box
  • Auto Galleries and Slideshows - what it says
  • Splash Pages - Open modal on pageload
  • Convert Classes - you can specify classes to convert into modal links which allows the conversion of squeezebox links that you might have already used. There are some limitations with this.

Simple Link

Load an image in a modal box

[modal http://www.example.com/images/myimage.jpg]Click here to see my image[/modal]

NB: Swap [] for {} - I used brackets instead of curly braces so Joomla did not parse the demo text.

This will display an image in a modal box when clicked. You can add other styling to it if needed i.e. Joomlashine link class or button class. You dont need to put it in an iFrame.

Load an image in a modal box of fixed size

[modal http://www.example.com/images/myimage.jpg|width=200|height=100]Click here to see my image[/modal]

NB: Swap [] for {} - I used brackets instead of curly braces so Joomla did not parse the demo text.

I have defined a fixed size for the modal box using the |width=200|height=100 you can also use percentages.

There are more switches you can use here.

Split DOM (button and seperate code block) - Untested

Using NoNumbers for inline content and loading modules is a bit more akward than other methods to get working but is not difficult. i need to test with code and a module.

Create a modal box with standard content

  1. Add this code in your article where you want it. Replace "...Modal Content Here..." with your content that you want in your modal which can be text or HTML, there are no restrictions except the standard Joomla ones. {test this}
    [modal content=testmodal]Testmodal Button[/modal]

    [modalcontent testmodal]
    ...Modal Content Goes Here...
    [/modalcontent]

    NB: The style="display: none;" hides the original code to prevent duplication
  2. If you are adding this into a module you need to make sure you enable the "Prepare Content" option
  3. Done

Load a module in a modal box

To go one step further and load a module instead of code already in the content, you just need to load your module into the modal content block via a plugin.

Follow the instructions above but replace the modal code block

[modal content=testmodal]Testmodal Button[/modal]

with any of the following or similiar plugin calls:

[modal content=testmodal][loadposition][/modal]
[modal content=testmodal][loadmodule][/modal]
[modal content=testmodal][module Some module][/modal]
[modal content=testmodal][module 27][/modal]
[modal content=testmodal][modulepos position-7][/modal]

NB: Swap [] for {} - I used brackets instead of curly braces so Joomla did not parse the demo text.

Enforce an Iframe

[modal http://www.example.com/images/myimage.jpg|iframe=true]Click here to see my image[/modal]

or

[modal content=testmodal|iframe=true]This gets replaced with the content block testmodal[/modal]

Adding to the button code |iframe=true enforces an iframe. All external URLs are rendered in iframes by default.

NoNumber Notes

  • |title=My Modal Title - this sets a heading of the modal window that opens. replace My Modal Title for whatever you wnat for the title
  • inteligently applys &tmpl=component for internal links
  • when you  have finished resizing your window, the modal box will then resize itself to fit again rather than as you go.

NoNumber Links






Useful CSS

I do not know if this fixes anything but it is here just incase

/* Correct Modal Positioning */
@media (max-width: 767px) {
    .modal { position: inherit !important; }
}



Read 5503 times Last modified on Tuesday, 07 March 2017 20:49
