Saturday, 11 October 2025 13:58

My Ventoy Notes

My Ventoy notes.

Misc

  • Upgrade Ventoy on USB: Easy step-by-step guide - YouTube | Bootable USBs
    • Learn how to safely update Ventoy to the latest version on your USB drive. This step-by-step tutorial will show you how to maintain configurations, update iso files, and ensure compatibility with Windows 11.
    • Discover the seamless way to keep your Ventoy USB drive up-to-date without losing any of your stored ISO files or configurations! This easy-to-follow tutorial walks you through the process of updating Ventoy to the latest version, ensuring a smooth transition while keeping all your data intact.
    • Whether you're a first-timer or an experienced user, this guide is designed to help you upgrade your bootable USB with ease and confidence. Stay ahead with the newest features and improvements of Ventoy - watch now and update like a pro!
  • Ventoy Disk Layout / Technicals
    • Ventoy Disk Layout In MBR | Ventoy
      • This shows how a Venoty USB drive is layed out.
      • Why MBR?: MBR is the only selection in order to support Legacy BIOS system.
    • Legacy BIOS Access Range Limitation | Ventoy
      • When booting from legacy, there is a limit of 137GB. So if that's the case with the BIOS in your machine and you install Ventoy into a USB drive with large capacity(e.g. 256GB), you will run into problem when booting.
      • There is an access limitation in some Legacy BIOS of some vendors. For example, some Legacy BIOS can't read the disk beyond 137GB. If you search "Legacy BIOS 137GB" in the internet, you will get many informations about that.
  • Plugins
    • Windows VHD Boot Plugin | Ventoy
      • Ventoy use this plugin to boot VHD(x) files with Windows 7+ in it.
      • Both Legacy BIOS and UEFI are supported. Both fixed and dynamic VHD(x) are supported.
      • For Windows 10 v1809+, in addition to NTFS, VHD(X) files can also be stored in the exFAT partition.
        • [Shared] Windows 10 v1903 (19H1) supports exFAT+VHD(X) mode | wuyou.net
        • How to boot Windows 10 VHD with ventoy at exFat partition (Windows VHD Boot Plugin) - YouTube
          • In this video, I Am about to show you how to boot Windows 10 VHD from ventoy, relying on the exFAT file system.
          • Since the FAT/exFAT file system, commonly used in flash storage media such as large-capacity U Disks and USB Drives. and Windows 10 1903, has been able to mount native support for VDH / VHDX virtual disk files from FAT/exFAT partitions. We can use this feature and format the windows partition to the exFAT file system to be able to boot the VHD using ventoy.
          • Note:
            • Use Win10 v1903 or higher (20H2 in this project used).
            • It will be slower than the exFAT startup speed in the traditional model, even NTFS.
            • VHD boot only supports dual NTFS or exFAT, doesn't support NTFS in exFAT, or versa.
            • the virtual disk can be fixed or dynamic size but recommended to use fixed if there is no space problem

Settings

  • Set Tree View as default
    • You can configure Ventoy to always show folders by adding/modifying the ventoy.json file with the following code:
      {
    "menu_style": "tree"
}
    • Place this file in the ventoy folder on your USB drive.
    • F3 will toggle the view irrespective of this file

Upgrading the VHV/VHDX plugin

Current Issues

  • either Windows 11 or my Lenovo laptop (and its drivers) are used and not compatible with my other machines, or DiskGenius does not like building a WinPE based on Windows 11.
  • Win10 WinPE Rufus images will not load, winload.exe error.
  • the VHD plugin needs updating to use the latest DLL etc..
  • Ventoy VHDX plugin might not like my Windows11 WinPE as it moans about Partition1 being on exFAT and not NTFS.

Instructions

  • Get the current Windows 10 plugin and upgrade the various files with those from my Windows 11 Pro PC. Ypu could use those from a Windows 11 Pro DVD if you do not have a live up to data system

Links

Pictures of failed loads (old VHD plugin)

Ventoy Warning - Partition1 (exfat) is Not ntfs, the VHD(X) file may not boot normally

Windows Boot Manager - Boot from VHD

Windows Boot Manager - winload.exe missing









Published in Applications
Read more...
Saturday, 04 October 2025 16:05

Rebuild the Windows Search Index

Rebuilding the Windows Search Index, which includes the Outlook Search, can resolve various issues:

  • Windows Explorer does not responding but crashes or restarts.
  • Whenever Windows Explorer is opened, it freezes and shows the "App Not Responding" dialogue. Then it crashes or shows the contents of the folder I clicked and freezes afterwards.
  • Slow searching.
  • Missing items in the index.
  • Having trouble finding emails in Outlook?
  • Is your search returning incomplete or incorrect results?
  • If you search for items in Outlook and don't receive the results that you expect.

View the Index and it's Status

There are several ways and places to view the search index properties and its progress in rebuilding. After you have wiped your index it is useful to see how things are going.

  • Indexing Options (Classic)

    • This will only show how many items are indexed and if there is indexing in progress. There are a few ways to view this window:
      1. Windows Key + I --> Privacy & security --> Search --> Find my files --> Classic --> Customise search locations
      2. Open Start menu and type: Indexing Options
      3. Outlook 2021 --> File --> Options --> Search --> Sources --> Indexing Options
  • Windows Search (New)

    • Windows Key + I --> Privacy & security --> Search
    • Now look at the top of the page and you will see the number of Indexed items and Pending counter.

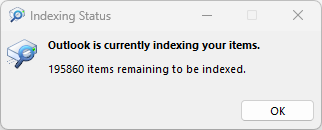

  • Outlook Search Index

    • This will shows you how many items left to be indexed
    • Click in the search box
    • Toolbar --> Search Tab --> Search Tools --> Indexing status

Make Indexing faster

Disabling the indexer backoff will allow indexing to finish faster while you're active on the computer instead, but it will use more system resources.

  • Run gpedit.msc
  • Navigate to: Computer Configuration\Administrative Templates\Windows Components\Search: Disable indexer backoff:
  • Set it to On (Default is Off)
  • Restart the Windows Search service
  • Once your index is rebuilt, set Disable indexer backoff  to Off and restart the Windows Search service.

Make Sure Outlook Emails are Indexed

We need to ensure that Outlook is on the Windows Search Index

  • Open Outlook
  • Navigate to File --> Options --> Outlook Options --> Search --> Indexing Options
  • Make sure Outlook is selected.
  • Completely restart Outlook to fix minor glitches that may be affecting the search function.

Outlook items are only indexed when Outlook is open

  • Once I opened Outlook and viewed the indexing progress, the number of items pending to be indexed went up, and kept going up for a while. Indexed items started increasing aswell.

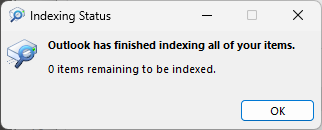

  • Once the items are indexed, you do not need Outlook open.

Reset Excluded Folders and Rebuild the Search Index

The following Powershell script fixes a lot of issue with the Windows search and is what I used.

  • You can reset everything (exclusions, index database, config) back to default using this PowerShell script. It bypasses the broken GUI and directly clears both the index data and registry entries:
  • This will fully wipe the Search Indexer state and restore clean defaults.
  • After a reboot, Windows will begin re-indexing only the standard folders.
    • A reboot is not needed, but I did it anyway.
  • You should open Outlook now so all of it's emails can get indexed.
# Stop Windows Search Service
Stop-Service -Name WSearch

# Delete the current search index database and configuration
Remove-Item -Path "$env:ProgramData\Microsoft\Search\Data\Applications\Windows" -Recurse -Force
Remove-Item -Path "$env:ProgramData\Microsoft\Search\Data\Temp" -Recurse -Force

# Optional: Reset registry exclusions (set back to defaults)
Remove-ItemProperty -Path "HKLM:\SOFTWARE\Microsoft\Windows Search\Gather\Windows\SystemIndex\Sites\LocalHost" -Name "DefaultGatherPolicy" -ErrorAction SilentlyContinue
Remove-Item -Path "HKLM:\SOFTWARE\Microsoft\Windows Search\Gather\Windows\SystemIndex\Sites\LocalHost\Paths" -Recurse -Force -ErrorAction SilentlyContinue

# Start Search Service
Start-Service -Name WSearch

Notes

  • If any exclusions still reappear, it means they’re being pushed by a policy or a background process.
  • It adds all of the users folders in rather than specifying document and picture folders which is the default configuration of a new Windows PC/Profile.
  • This old arrangement that I had (separate Document, Picture, Video folders etc..) listed in the index might of been because my system was upgraded from previous Windows versions (XP --> Win7 --> Win10 --> Win11)

Links

  • General
    • Enable or Disable Enhanced Mode for Windows Search in Windows 10 & 11 - MajorGeeks
      • Windows 10 has added many settings to manage Windows Search. By default, Classic mode is on by default, which only searches your libraries and Desktop. The Enhanced mode can search your entire PC.
      • In this tutorial, we help you choose between the two and customize Windows 10 & 11 Search.
    • Weird looking paths get added to Windows 10 search index and break search - Super User
      • A few times in last weeks I have noticed that search from start menu wont find any files. Simply rebuilding the index did not fix this. Looking deeper into indexing settings I found that there was strange looking path being included in the index, one that I had not put there.
      • CSC stands for "Client Side Cache" which is used to hold Offline Files. These are local copies of files that exist on SMB shares like mapped network drives. By default, Windows indexes the CSC so that you can quickly find any network files that you've opened recently. The CSC index can become corrupt and put a full bork on indexing.
  • Explorer Crashing
  • Rebuild the Windows Search Index
    • how to delete all exclude folders in search indexer and revert it to default? - Microsoft Q&A
      • This has a Powershell and a Batch script method.
      • This is the additional batch file, just in-case it goes offline. I have not used it.
        sc config wsearch start= disabled
net stop wsearch
REG ADD "HKLM\SOFTWARE\Microsoft\Windows Search" /v SetupCompletedSuccessfully /t REG_DWORD /d 0 /f
del "%ProgramData%\Microsoft\Search\Data\Applications\Windows\Windows.edb" /a
del "%ProgramData%\Microsoft\Search\Data\Applications\Windows\Windows.db" /a
sc config wsearch start= delayed-auto
net start wsearch
:: reg query "HKLM\SOFTWARE\Microsoft\Windows Search\Gathering Manager"
:: reg query "HKLM\SOFTWARE\Microsoft\Windows Search"
reg query "HKLM\SOFTWARE\Microsoft\Windows Search\Gathering Manager" /v *path
reg query "HKLM\SOFTWARE\Microsoft\Windows Search" /v *dir*
reg query "HKLM\SYSTEM\CurrentControlSet\Services\WSearch"
icacls %ProgramData%\Microsoft\Search\Data\
icacls %ProgramData%\Microsoft\Search\Data\Temp\
icacls %ProgramData%\Microsoft\Search\Data\Applications
icacls %ProgramData%\Microsoft\Search\Data\Applications\Windows
PAUSE
PAUSE
    • How to Reset Windows Search in Windows 11 | NinjaOne - Reset Windows Search to fix slow search and missing results. Use PowerShell, Registry Editor, Control Panel, and other methods to restore search speed.
    • Reset and Rebuild Search Index in Windows 11 | Windows 11 Forum
      • This tutorial will show you how to manually reset and rebuild the search index for accurate search results in Windows 11.
    • How to Delete and Rebuild the Windows 10 & 11 Search Index - MajorGeeks
      • Windows 10 keeps an index of all your searches so that you can get the fastest search results.
      • If you find that you're getting slow, missing, or incorrect results than it might be time to delete and rebuild your search index.
    • How to rebuild Search Index in Windows 11 | TheWindowsClub - You can reset, repair, rebuild Search Index in Windows 11/10 via Indexing Option Control Panel applet or by using this BAT file. Learn how.
  • Rebuild the Outlook Search Index
    • How to Rebuild Your Search Index on Microsoft Outlook [TUTORIAL] - YouTube
      • Having trouble finding emails in Outlook? Is your search returning incomplete or incorrect results?
      • It might be time to rebuild your Outlook search index!
      • In this tutorial, we’ll walk you through the exact steps to fix Outlook search issues by resetting and rebuilding the indexing system — a fast and effective way to bring back accurate and lightning-fast results.
    • How to Rebuild the Outlook Search Index (Step-by-Step Guide)
      • Fix Outlook search issues! Rebuild your search index on Windows, Mac, or Exchange to restore accurate and fast search results.
      • This guide provides clear, step-by-step instructions for rebuilding the index on Windows and Mac systems, as well as for Exchange environments.
  • Troubleshooting Indexing Issues
    • Fix Windows 11 Indexing Issues: Troubleshooting Guide | Windows Forum
      • Indexing issues on Windows 11 can be as frustrating as a stubborn jam at your favorite coffee machine—especially when you're trying to search for that elusive file during a crunch time.
      • Windows indexing is the unsung hero that catalogs file properties and metadata to ensure speedy searches, but sometimes it just refuses to play ball.
      • If you're encountering the notorious message “Indexing is not running” or noticing that your searches start only to stall mid-air, you're not alone.
      • Here’s a deep dive into why this happens and how you can get your indexing service back on track.
      • Run the Search and Indexing troubleshooter: msdt.exe -ep WindowsHelp id SearchDiagnostic
  • Outlook Search Not Working
    • Outlook Search Isn't Working? Here's How to Fix It | How-To Geek
      • Those emails didn't just disappear.
      • Ensure Outlook is on the Windows search index. Open Outlook, then navigate to FIle > Options > Outlook Options > Search > Indexing Options, and make sure Outlook is selected.
      • Completely restart Outlook to fix minor glitches that may be affecting the search function.
      • Try using the Search and Indexing troubleshooter or update Outlook to resolve search-related issues.
    • Outlook 2021 indexing not working - Microsoft Q&A
      • After installation of outlook 2021 all the mails have been downloaded but I am not able to search any mail through search bar. indexing not working after rebuild database.
      • Run the Search and Indexing troubleshooter: msdt.exe -ep WindowsHelp id SearchDiagnostic
  • Disable Indexing
  • Make Indexing Faster
  • Excluded or Included Folders
    • This Excluded or Included depends on whether you are using the Classic or the Enhanced version of Windows Search.
    • Add or Remove Search Index Locations in Windows 11 | Windows 11 Forum
      • This tutorial will show you how to add or remove locations to be excluded or included in the search index in Windows 11.
      • Microsoft is beginning to roll out a change that brings those two settings pages together so you can easily access to all the Windows Search settings under a single settings page via Settings > Privacy & security > Search.
    • How to stop Windows Search from auto-excluding repository folders? - Super User
      • Windows search indexer is adding most paths to repository folders (both .git and .svn) to the exclusion list.
      • I can remove them manually of course, but each time I rebuild the index - they are re-added.
      • I can add them as indexed locations, but I'd have to do that each and every time I add a new repository and I add them in varying locations depending on relation.
      • Why is Windows excluding these and how can I alter that behavior?
    • search indexing - How to reset and clear all previous Windows Index config? - Super User
      • This is where Windows Indexing rules (exclusions) are located in the registry, which are not only easier to manage/export/import, but are reflected in Windows Settings awful UX for this:
        HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows Search\CrawlScopeManager\Windows\SystemIndex\WorkingSetRules\

and

HKEY_LOCAL_MACHINE\SOFTWARE\Microsoft\Windows Search\Gather\Windows\SystemIndex\Sites\LocalHost\Paths\
    • Hide Files and Folders from Search Results in Windows 11 | TheWindowsClub - In this article, we will demonstrate how you can hide files and folders from your Search Results in Windows 11 or Windows 10.



Published in Windows General
Read more...
Tuesday, 26 August 2025 12:40

My FFmpeg Notes

A collection of my FFmpeg notes

Downloading the Windows Binaries

Getting the right version can be tricky unless you know what file to download and why, but that is easy to explain.

TL;DR

Static vs. Shared Builds

In general, when you compile a binary, you may prefer to include its dependencies (Static) so that users don't need to search for external dlls aftermath, or try to use the executable with an incompatible version of the dll, but it means that the same dll will have to be present in all executables that need them, so that the whole software will use more room on the HD. Shared versions are likely to save some space, but I presume they are not significantly faster than others. It is useful just to explain the difference between the two compiling types.

  • Static build (essentials, full):
    • The .exe (on Windows) or binary contains all libraries compiled inside it.
    • Easier to use — you just download, extract, and run ffmpeg.exe.
    • Bigger file size, less flexible if you want to swap/update libraries individually.
    • Each binary has the required libraries and DLLs compiled in, each binary is therefore self contained and needs nothing else to run.
    • All components and libraries reside in the EXE file. So, it is self-contained.
  • Shared build (full shared):
    • The binary depends on separate .dll (on Windows) or .so (on Linux) library files.
    • The main ffmpeg.exe is smaller, but it requires those external files to run.
    • More modular: you can update or replace individual codec libraries without rebuilding FFmpeg.
    • Useful for developers embedding FFmpeg into other applications.
    • Less portable: you can’t just copy ffmpeg.exe alone to another PC — you also need all the matching DLLs.
    • Each ffmpeg library resides in a separate DLL, and the ffmpeg binaries (ffmpeg.exe ..etc) link to these libraries i.e. locate and access their capabilities only during execution. However, 3rd party libs are statically linked with the corresponding ffmpeg lib.e.g. libx264 resides inside avcodec.dll
    • The DLLs should be in your path or same folder as the EXE. Saves space but if you have multiple av*.dll in your path, due to older versions or other builds, that is liable to create problems.
    • Shared "shares" the DLLs and libraries between ffmpeg, ffprobe and ffplay.
    • You’ll usually see several folders:
      • bin\ → contains ffmpeg.exe, ffplay.exe, ffprobe.exe, and .dll files.
      • lib\ → contains development libraries (.a, .lib) for compiling against FFmpeg.
      • include\ → header files for developers.

What Version of FFmpeg should I download?

  • Essentials
    • Use case: Support features in a program like Krita or Blender
    • A minimal build of FFmpeg that includes the most widely used codecs and features.
    • Includes:
      • Common encoders/decoders like H.264 (via libx264), AAC, MP3, VP9, etc.
      • Basic formats and filters needed for everyday media conversion.
  • Full
    • Use case: Just converting media for personal use?
    • All formats, filters, encoders and decoders are included.
  • Full Shared
    • Use case: Developing software or need modular updates.
    • Same functionality as "Full"
    • Do not use this version if you are not a software developer, otherwise you may encounter missing xxx.dll errors.

How to get the latest build for Windows

Links









Repairing Media Files

You’ve got an AEA audio file (Sony ATRAC encapsulation, usually .aea), and while VLC can play it, MKVToolNix won’t accept it — which strongly suggests that the container header is damaged or malformed, even if the raw audio stream is intact. Here are some free/open-source tools and workflows you can try to “repair” or rewrap it into something MKVToolNix will accept:

1. FFmpeg (best first try)

  • FFmpeg is usually the most effective way to “rewrap” or re-encode damaged media.
  • Since VLC can play it, FFmpeg should also be able to read it.

Try first a straight rewrap (no re-encoding):

ffmpeg -i input.aea -c copy output.wav

or

ffmpeg -i input.aea -c copy output.mka

If the header is corrupt, FFmpeg might still balk. In that case, force stream copy with re-indexing:

ffmpeg -err_detect ignore_err -i input.aea -c copy fixed.mka

If that still doesn’t work, do a lossless re-encode to WAV (PCM):

ffmpeg -i input.aea -c:a pcm_s16le output.wav

Once you have a WAV/FLAC/MKA, MKVToolNix should accept it.

2. SoX (Sound eXchange)

  • Another open-source audio utility, great at handling raw audio.
  • If FFmpeg struggles, you can try:
sox input.aea output.wav

3. Audacity (GUI method)

  • Free, open-source audio editor.
  • Import the .aea into Audacity (it uses FFmpeg under the hood), then export as WAV/FLAC.
  • This bypasses container issues and ensures you get a clean audio file.

4. Re-mux with mkvmerge directly

  • Sometimes MKVToolNix GUI rejects files that mkvmerge (the CLI tool) can still handle.
    Try:
mkvmerge -o output.mkv --no-video input.aea

My recommendation: Start with FFmpeg (method 1). If -c copy fails, re-encode to WAV/FLAC and then mux that into MKV. Do you want me to give you a one-liner FFmpeg command that will automatically fix/dump to WAV even if the header is bad, so you can drag it straight into MKVToolNix? you want to keep the original audio stream untouched (no re-encoding). That means we need to focus on remuxing/repairing the container only.

1. FFmpeg (copy mode, no re-encode)

This is the safest first step:

ffmpeg -i input.aea -c copy output.mka
  • -c copy = stream copy (no re-encoding).
  • mka (Matroska Audio) is usually well-accepted by MKVToolNix.

If the header is damaged, you can try forcing FFmpeg to ignore errors:

ffmpeg -err_detect ignore_err -i input.aea -c copy fixed.mka

2. Try mkvmerge directly

Even if MKVToolNix GUI rejects it, the CLI might succeed:

mkvmerge -o output.mka input.aea

or

mkvmerge -o output.mkv --no-video input.aea

3. Container rewrap (raw stream copy)

If FFmpeg can demux the stream but not mux it properly, you could dump the raw stream first:

ffmpeg -i input.aea -c copy output.oma

(.oma is another ATRAC container Sony used; Matroska often accepts it better.)
Then try adding output.oma into MKVToolNix. If all copy-only methods fail, the problem may be that the damaged AEA header prevents FFmpeg from identifying the stream type. In that case, we’d need to manually specify the codec during remuxing (still without re-encoding). Do you want me to write you an FFmpeg command that forces the codec identification (e.g., ATRAC3/ATRAC9) so it can copy the stream even if the header is broken? Perfect ? If the AEA header is damaged, FFmpeg may fail to guess the codec, but you can force it to treat the stream as ATRAC and just remux without re-encoding.

1. Identify the codec

Run:

ffmpeg -i input.aea
  • Even if it errors out, FFmpeg usually prints something like:
    Stream #0:0: Audio: atrac3 (or atrac3plus / atrac9), 44100 Hz, stereo

Note the codec name (likely atrac3 or atrac3plus).

2. Force remux with codec copy

Once you know the codec, run:

ffmpeg -f aea -i input.aea -c:a copy -map 0 output.mka



  • -f aea → forces FFmpeg to read as AEA format.
  • -c:a copy → copies the stream without re-encoding.
  • -map 0 → ensures all streams are included.
  • output.mka → Matroska Audio container, friendly for MKVToolNix.



3. If FFmpeg still fails to guess properly

You can force the codec by specifying it:

ffmpeg -f aea -i input.aea -c:a copy -acodec atrac3 fixed.mka

(or -acodec atrac3plus depending on what you saw in step 1).   This way, you keep the original audio untouched, just rewrapped into .mka so MKVToolNix can accept it.

Do you want me to also show you how to probe the file with ffprobe to be 100% sure which ATRAC variant you’ve got before running the copy?



what is ffprobe ffprobe is a companion tool to FFmpeg.

  • Where ffmpeg converts or remuxes media,
  • ffprobe analyzes media and prints detailed info about streams, codecs, metadata, bitrates, etc.

It’s included automatically when you install FFmpeg (same download).

Example usage

ffprobe input.aea

You’ll see output something like:

Input #0, aea, from 'input.aea':
  Duration: 00:04:21.00, bitrate: 132 kb/s
  Stream #0:0: Audio: atrac3, 44100 Hz, stereo, fltp

That tells you:

  • Container format (aea)
  • Codec (atrac3 / atrac3plus / atrac9)
  • Sample rate, channels, etc.

Why it’s useful here

Since your AEA header may be broken, ffmpeg -i input.aea or ffprobe input.aea will tell us:

  • If FFmpeg can still detect the codec
  • Which exact ATRAC variant you have
  • What flags we need to use for a clean stream copy into .mka

  Do you want me to give you a ready-to-run command that uses ffprobe to print just the codec name (so you don’t have to scan through a big text output)? what is the difference between ffprobe and ffpmeg -i Great question ? — they look similar, but there are some important differences between ffmpeg -i and ffprobe:

? ffmpeg -i input.ext

  • ffmpeg is mainly a converter/remuxer.
  • When you run it with just -i, it:
    • Prints some stream info to the console (container, codec, bitrate, channels, etc.).
    • Then usually errors out because you didn’t tell it what to output.
  • The printed info is meant for humans (not machine-readable).

Example:

ffmpeg -i input.aea

Output:

Input #0, aea, from 'input.aea':
  Duration: 00:04:21.00, bitrate: 132 kb/s
  Stream #0:0: Audio: atrac3, 44100 Hz, stereo, fltp

? ffprobe input.ext

  • ffprobe is dedicated to analysis only.
  • It never tries to convert or output media — it just inspects it.
  • It can print:
    • The same human-readable info as ffmpeg -i
    • Or structured machine-readable output (JSON, XML, etc.)

Example (human-readable):

ffprobe input.aea

Example (just codec name in JSON):

ffprobe -v error -select_streams a:0 -show_entries stream=codec_name -of default=noprint_wrappers=1:nokey=1 input.aea

Output:

atrac3

In short:

  • ffmpeg -i → Quick check, human-readable, but “side effect” is that it looks like an error run.
  • ffprobe → Purpose-built for inspecting files, can give clean codec info and more detailed technical metadata.



  Convert AEA to FLAC  from the wiki that the rest are based on

for f in *.aea; do ffmpeg -i "$f" -vn -hide_banner -c:a flac -sample_fmt s16 -ar 44100 "${f%.aea}.flac"; done

Your Linux command loops through all *.aea files in the current folder and converts them to FLAC using ffmpeg. On Windows (cmd.exe) you can write it like this:

for %%f in (*.aea) do ffmpeg -i "%%f" -vn -hide_banner -c:a flac -sample_fmt s16 -ar 44100 "%%~nf.flac"

Notes:

  • If you run this directly in a batch file (.bat), keep the double %%f.
  • If you run it directly in the command prompt, use a single %f:
for %f in (*.aea) do ffmpeg -i "%f" -vn -hide_banner -c:a flac -sample_fmt s16 -ar 44100 "%~nf.flac"

Do you want me to also give you the PowerShell version (nicer syntax, supports Unicode filenames better), or will you run this in cmd.exe? Here’s the PowerShell version of your loop:

Get-ChildItem *.aea | ForEach-Object {
    ffmpeg -i $_.FullName -vn -hide_banner -c:a flac -sample_fmt s16 -ar 44100 "$($_.BaseName).flac"
}

Explanation:

  • Get-ChildItem *.aea → gets all .aea files in the folder.
  • $_ → represents each file object.
  • $.FullName → full path to the file.
  • $.BaseName → filename without extension (so output becomes filename.flac).

⚡ Advantage: PowerShell handles spaces and special characters in filenames much more gracefully than cmd.exe.

Do you want me to also make a ready-to-run .ps1 script that you can drop into your folder and double-click/run, or will you paste it directly into the PowerShell terminal?

Here’s a ready-to-run PowerShell script (batch file) you can save as Convert-AEA.ps1 in the same folder as your .aea files:

# Convert-AEA.ps1
# Converts all .aea files in the current folder to FLAC (16-bit, 44.1kHz)

# Get all .aea files in this folder
Get-ChildItem -Filter *.aea | ForEach-Object {
    $inputFile = $_.FullName
    $outputFile = "$($_.BaseName).flac"

    Write-Host "Converting $($_.Name) -> $outputFile"
    ffmpeg -i "$inputFile" -vn -hide_banner -c:a flac -sample_fmt s16 -ar 44100 "$outputFile"
}

How to use it

  1. Open Notepad, paste the script above, and save it as Convert-AEA.ps1 in your folder with the .aea files.
    (Make sure the file extension is .ps1, not .txt.)
  2. Open PowerShell in that folder.
  3. If scripts aren’t allowed yet, run this once to enable them:
    Set-ExecutionPolicy -Scope CurrentUser -ExecutionPolicy RemoteSigned
  4. Run the script:
    .\Convert-AEA.ps1

Same loop as the first script, just expanded with variables and messages so it’s easier to read and debug.



Got it ✅ Here’s the PowerShell script version (Batch file) that will scan the current folder and all subfolders for .aea files, then convert them to .flac while keeping the same folder structure:

# Convert-AEA.ps1
# Recursively converts all .aea files in this folder (and subfolders) to FLAC (16-bit, 44.1kHz)

# Get all .aea files in this folder and subfolders
Get-ChildItem -Filter *.aea -Recurse | ForEach-Object {
    $inputFile  = $_.FullName
    $outputFile = Join-Path $_.DirectoryName "$($_.BaseName).flac"

    Write-Host "Converting $($_.FullName) -> $outputFile"
    ffmpeg -i "$inputFile" -vn -hide_banner -c:a flac -sample_fmt s16 -ar 44100 "$outputFile"
}

How it works

  • -Recurse makes PowerShell go into all subfolders.
  • Join-Path $_.DirectoryName ... ensures each .flac lands in the same folder as the original .aea file.
  • Outputs look like:
    music\track1.aea → music\track1.flac
music\subfolder\track2.aea → music\subfolder\track2.flac

recursive one-liner (for pasting, and from above)

Get-ChildItem -Filter *.aea -Recurse | ForEach-Object {
    ffmpeg -i $_.FullName -vn -hide_banner -c:a flac -sample_fmt s16 -ar 44100 "$($_.DirectoryName)\$($_.BaseName).flac"
}

Difference from your original:

  • -Recurse → searches subfolders too.
  • "$($_.DirectoryName)\$($_.BaseName).flac" → makes sure the .flac is written into the same folder as the source file (not all dumped into the top folder).

recursive PowerShell one-liner that also skips files already converted:

Get-ChildItem -Filter *.aea -Recurse | ForEach-Object {
    $outFile = Join-Path $_.DirectoryName "$($_.BaseName).flac"
    if (-Not (Test-Path $outFile)) {
        ffmpeg -i $_.FullName -vn -hide_banner -c:a flac -sample_fmt s16 -ar 44100 $outFile
    } else {
        Write-Host "Skipping $($_.FullName) → already exists."
    }
}

How it works:

  • Test-Path $outFile → checks if the .flac already exists.
  • If yes → it prints Skipping…
  • If no → it runs ffmpeg normally.













Published in Media
Read more...
Friday, 22 August 2025 14:45

Windows changes the WiFi Network when it has no Internet Connection

The Issue

  • By default, if your current WiFi network does not have a valid internet connection, Windows will disconnect and try another WiFi network.
  • This is not roaming where your WiFi NIC tries to connect to the strongest AP of the same SSID.
  • Windows by design marks a Wi-Fi as “Limited” if it can’t reach the internet (via the Network Connectivity Status Indicator, NCSI check). When this happens, Windows may try to roam to another SSID that looks “better”, even if you want to stay put.

Cause

Solutions

TL;DR

  • Best solution if you want zero hassle: Disable NCSI probing (Method 5)
  • The most reliable cross-platform trick is to assign a static IP configuration (with no gateway/DNS), so the OS doesn’t expect Internet routing from that Wi-Fi. That way it just treats it as a LAN.
  • There isn’t a simple toggle in Windows to say “stay connected no matter what”, but in Windows 10/11, you can force the system to stay connected to one SSID even if it has no internet.
  • You can stop that behaviour by using one of the methods below. Some methods prevent the switching of SSID while there are some scripts to constantently check the SSID and if it has changed will revert tot he correct SSID.

Method 1: Make the SSID your top priority & stop auto-switching

  1. Press Win + I → open Settings.
  2. Go to Network & Internet → Wi-Fi → Manage known networks.
  3. Click your target SSID → Properties.
    • Turn On → “Connect automatically when in range.”
  4. Back in Wi-Fi settings, disable:
    • Hotspot 2.0 networks (if you don’t use them).
    • Connect to suggested open hotspots.
    • Connect to networks shared by my contacts (on older Windows builds).
  5. Run this command in PowerShell (admin) to prevent Windows from switching away:
    netsh wlan set profileparameter name="YourSSID" connectionmode=auto
netsh wlan set profileparameter name="YourSSID" nonBroadcast=connect
    (Replace YourSSID with the exact Wi-Fi name.)

Method 2: Force Windows to always use that Wi-Fi (interface metric trick)

By default, Windows disconnects when a network has no valid gateway/internet. You can override that:

  1. Press Win + R, type ncpa.cpl, hit Enter.
  2. Right-click your Wi-Fi adapter → Properties.
  3. Select Internet Protocol Version 4 (TCP/IPv4) → Properties → Advanced.
  4. At the bottom, uncheck Automatic metric, and set Interface metric = 1 (highest priority).
    • This tells Windows: “always prefer this adapter, regardless of internet state.”

Optional: If you don’t need internet routing via this SSID (just local LAN), you can remove the Default Gateway entry in the IPv4 settings. That way, Windows won’t even expect internet, so it won’t try to drop it.

Method 3: Disable "Smart Disconnect"

Some Wi-Fi drivers (Intel, Realtek, Killer, etc.) have a feature that disconnects from networks without internet:

  1. Open Device Manager → expand Network adapters.
  2. Right-click your Wi-Fi adapter → Properties → Advanced tab.
  3. Look for options like Roaming Aggressiveness, Smart Disconnect, or Prefer Band.
  4. Set Roaming Aggressiveness = Lowest, and disable any “Smart Disconnect”/“Disconnect if no Internet” feature.

  There isn’t a simple toggle in Windows to say “stay connected no matter what”, but there are a few reliable workarounds:

Method 4: Use a “No Internet” Profile

  • In Network & Sharing Center, set a static IP on your Wi-Fi and leave the gateway blank.
  • Without a gateway, Windows won’t expect internet and won’t mark it as “Limited.”
  • It will stay connected as a pure LAN.
  • The downside of this method is that you do not have internet when it is available and when you manually swap networks you might have to change you IP address.

Method 5: Disable the NCSI Internet connectivity check / Probe

This disables the Windows’ NCSI Internet connectivity check forcing Windows to always report “Connected” to your Wi-Fi, even if there’s no Internet so it will never get tagged as "Limited" and then be dropped. Windows will stop testing for internet access and this alone fixes the auto-disconnect in most cases.

  1. Press Win+R, type regedit, press Enter.
  2. Navigate to:
    HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\NlaSvc\Parameters\Internet
  3. Change these values (create them if missing):
    • EnableActiveProbing → set to 0 (DWORD)
  4. Restart your computer.

Disable_NCSI.reg

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\NlaSvc\Parameters\Internet]
"EnableActiveProbing"=dword:00000000

This makes Windows always report “Connected” regardless of Internet access.

Re-Enable_NCSI.reg

Windows Registry Editor Version 5.00

[HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Services\NlaSvc\Parameters\Internet]
"EnableActiveProbing"=dword:00000001

Note: With NCSI disabled, Windows will always show “Connected” even if the network is offline. Apps that rely on NCSI (like the captive portal pop-up for hotel Wi-Fi) won’t launch automatically — you’ll need to open a browser manually in those cases.

Method 6: Use Third-Party Tools

If you want more control, a few small utilities exist that can “lock” Windows to a specific SSID:

These basically override Windows’ automatic “choose a better network” logic.

Method 7: Disable "autoSwitch" for Wi-Fi networks (Windows 11)

This method requires manual intervention but can be useful in some setups.

  • Turn On or Off AutoSwitch for Wi-Fi Network in Windows 11 | Windows 11 Forum
    • This tutorial will show you how to turn on or off autoSwitch for Wi-Fi networks set to connect automatically when in range on your Windows 11 or Windows 10 PC.
    • When you connect to a Wi-Fi network for the first time, Windows will automatically add a profile for the Wi-Fi network. The saved profile contains the SSID (network name), security key (password), and connection and security properties used to connect to this specific Wi-Fi network.
    • If you turn on connect automatically to a Wi-Fi network, Windows will automatically connect to this Wi-Fi network when in range based on priority order.
    • The autoSwitch parameter controls the roaming behavior of an auto-connected Wi-Fi network when a more preferred connect automatically Wi-Fi network is in range. If autoSwitch is turned on, it allows Windows to continue looking for other connect automatically Wi-Fi networks while connected to the current Wi-Fi network. If a higher priority connect automatically Wi-Fi network than the currently connected Wi-Fi network comes in range, Windows will automatically switch and connect to it instead.

Method 8: Scripted Auto-Reconnect

If you’re comfortable with PowerShell, you can make Windows automatically reconnect to your SSID even if it drops:

Option 1 - Background Scheduled Task

  • This will run silently.
  • This is to be run as a background scheduled task
  • Every 10 seconds this script will check to make sure the Wifi is connected to the configured SSID, and if not, it will swap it back.
  • This script does not prevent switching.
# Force Wi-Fi to stay connected to one SSID, even if disconnected
$SSID = "YourSSID"
while ($true) {
    $connected = (netsh wlan show interfaces) -match $SSID
    if (-not $connected) {
        netsh wlan connect name=$SSID
    }
    Start-Sleep -Seconds 10
}
  • Replace YourSSID with your exact Wi-Fi name (SSID).
  • Save this as ForceWiFi.ps1
  • Run this as a background scheduled task
  • Run Automatically at Startup
    • Open Task Scheduler (Win+R → taskschd.msc).
    • Click Create Task.
    • On the General tab:
      • Name: Force Wi-Fi Stay Connected
      • Check Run with highest privileges.
    • On the Triggers tab:
      • New → Begin the task: At log on.
    • On the Actions tab:
      • New → Action: Start a program
      • Program/script: powershell.exe
      • Arguments:
        -ExecutionPolicy Bypass -File "C:\Path\To\ForceWiFi.ps1"
    • Save → Restart → it will auto-run in background.

Option 2 - Manually run PowerShell Script (displays connection status)

  • This will output the connection status to the screen on every cycle.
  • You can easily stop this by closing the command window.
  • Every 10 seconds this script will check to make sure the Wifi is connected to the configured SSID, and if not, it will swap it back.
  • This script does not prevent switching.
# Force Wi-Fi to stay connected to one SSID, even if disconnected
$SSID = "YourSSID"   # <-- Replace with your Wi-Fi name

while ($true) {
    $connected = (netsh wlan show interfaces) -match $SSID
    if (-not $connected) {
        Write-Output "[$(Get-Date -Format 'HH:mm:ss')] Not connected. Reconnecting to $SSID..."
        netsh wlan connect name="$SSID"
    } else {
        Write-Output "[$(Get-Date -Format 'HH:mm:ss')] Still connected to $SSID."
    }
    Start-Sleep -Seconds 10
}
  • Replace YourSSID with your exact Wi-Fi name (SSID).

Method 9: Combined NCSI Probing and SSID Switcher

I have added this here just in-case I need to come up with a more streamlined solution.

This script will

  1. Applies the registry tweak (disables NCSI probing).
  2. Creates the PowerShell script in C:\ForceWiFi\ForceWiFi.ps1.
  3. Registers a Task Scheduler job that runs it at login with highest privileges.

How to Use

  1. Copy the code into Notepad.
  2. Save as ForceWiFiSetup.bat (Save as type: All Files, not .txt).
  3. Right-click → Run as Administrator.
  4. Edit C:\ForceWiFi\ForceWiFi.ps1 and change YourSSID to your actual Wi-Fi name.
  5. Reboot.

After reboot:

  • Windows will no longer drop your Wi-Fi just because it has no Internet.
  • The scheduled task will always force reconnection to your chosen SSID in the background.

ForceWiFiSetup.bat (Installer)

Save this as ForceWiFiSetup.bat (Right-click → Run as Administrator):

@echo off
:: =====================================
:: Force Windows to stay connected to one SSID
:: =====================================

:: --- Create folder for script
mkdir "C:\ForceWiFi" >nul 2>&1

:: --- Create the PowerShell script
echo # Force Wi-Fi to stay connected to one SSID, even if disconnected > C:\ForceWiFi\ForceWiFi.ps1
echo $SSID = "YourSSID"   # <-- Replace with your Wi-Fi name >> C:\ForceWiFi\ForceWiFi.ps1
echo while ($true) { >> C:\ForceWiFi\ForceWiFi.ps1
echo     $connected = (netsh wlan show interfaces) -match $SSID >> C:\ForceWiFi\ForceWiFi.ps1
echo     if (-not $connected) { >> C:\ForceWiFi\ForceWiFi.ps1
echo         Write-Output "[$(Get-Date -Format 'HH:mm:ss')] Not connected. Reconnecting to $SSID..." >> C:\ForceWiFi\ForceWiFi.ps1
echo         netsh wlan connect name="$SSID" >> C:\ForceWiFi\ForceWiFi.ps1
echo     } else { >> C:\ForceWiFi\ForceWiFi.ps1
echo         Write-Output "[$(Get-Date -Format 'HH:mm:ss')] Still connected to $SSID." >> C:\ForceWiFi\ForceWiFi.ps1
echo     } >> C:\ForceWiFi\ForceWiFi.ps1
echo     Start-Sleep -Seconds 10 >> C:\ForceWiFi\ForceWiFi.ps1
echo } >> C:\ForceWiFi\ForceWiFi.ps1

:: --- Disable NCSI Active Probing in registry
reg add "HKLM\SYSTEM\CurrentControlSet\Services\NlaSvc\Parameters\Internet" /v EnableActiveProbing /t REG_DWORD /d 0 /f

:: --- Register scheduled task
schtasks /create /tn "ForceWiFiStayConnected" /tr "powershell.exe -ExecutionPolicy Bypass -File C:\ForceWiFi\ForceWiFi.ps1" /sc onlogon /rl highest /f

echo.
echo =====================================
echo Setup complete!
echo - Replace YourSSID in C:\ForceWiFi\ForceWiFi.ps1 with your Wi-Fi name
echo - Restart your computer for registry change to take effect
echo =====================================
pause

ForceWiFiRemove.bat (Uninstaller)

Save this as ForceWiFiRemove.bat (Right-click → Run as Administrator):

@echo off
:: =====================================
:: Remove ForceWiFi setup (script + registry + scheduled task)
:: =====================================

:: --- Delete the PowerShell script folder
if exist "C:\ForceWiFi" (
    rmdir /s /q "C:\ForceWiFi"
    echo Removed C:\ForceWiFi folder.
) else (
    echo No C:\ForceWiFi folder found.
)

:: --- Re-enable NCSI Active Probing
reg add "HKLM\SYSTEM\CurrentControlSet\Services\NlaSvc\Parameters\Internet" /v EnableActiveProbing /t REG_DWORD /d 1 /f
echo Re-enabled Windows Internet connectivity check (NCSI).

:: --- Delete scheduled task
schtasks /delete /tn "ForceWiFiStayConnected" /f
echo Removed scheduled task ForceWiFiStayConnected.

echo.
echo =====================================
echo Cleanup complete!
echo - NCSI probing restored
echo - Scheduled task removed
echo - Script folder deleted
echo =====================================
pause



Published in Windows General
Read more...
Friday, 18 July 2025 13:13

PCIe Lane Diagnostics

How many PCIe lanes is your NVMe drive using in Windows

To check how many PCIe lanes your NVMe drive is using in Windows use the following apps to get the information.

CrystalDiskInfo

How to use:

  1. Install and run CrystalDiskInfo.
  2. Select your NVMe drive from the list at the top.
  3. Look for a line like:
    Transfer Mode: PCIe 3.0 x4 | PCIe 3.0 x4
  4. The first value is active lanes.
  5. The second is maximum supported lanes by the drive.

HWiNFO

How to use:

  1. Launch HWiNFO, only Sensors are needed, but you can use full mode.
  2. Expand "Bus"
  3. Expand "PCI Bus"
  4. Select "PCI Express Root Port", and under the "PCI Express section" on the right:
    • Version is the PCIe Generation
    • Read the "Maximum Link Width" and "Current Link Width" to get the NVMe port's lane information.
  5. Under the "PCI Express Root Port" you will probably see the following
    • "PCI Express x4 Bus"
      • "Samsung Electronics Pascal S4LV008 PCIe 4.0 x4 NVMe 2.0 SSD Controller" (or your drive)
        • Read the "Maximum Link Width" and "Current Link Width" to get the NVMe drives lane information.

The drive information in this tool is just information read from the tool, it does not have current lane, just information read from the firmware.

Samsung Magician

How to use:

  1. Open Samsung Magician.
  2. Select your NVMe drive.
  3. Under the "Drive Details" or "Interface" section, it will show something like:
    Interface: PCIe Gen 4.0 x4
    • This means it's using 4 lanes on Gen 4.

How can I check the number of PCIe lanes in Windows?

  • Use: HWiNFO
  • Count Your PCIe Lanes! Easy Guide for Any PC
    • Confused about PCIe lanes on your PC? Don't worry! This guide shows you simple methods to check how many lanes your system has (No software needed).
    • System Information Tool
      • On Windows, you can use the built-in System Information tool to find information about your motherboard and its PCIe lanes.
      • Press Win+R to open the Run dialog, type “msinfo32,” and hit Enter.
      • In the System Information window, navigate to “Components” > “PCI.” There, you will see a list of all PCIe devices in your system and their current link widths (corresponding to the number of lanes).
    • Third-Party Software
      • Some third-party software tools can provide detailed information about your computer’s hardware, including PCIe lanes.
      • CPU-Z and GPU-Z are popular tools that can provide comprehensive information about the motherboard and connected PCIe devices.
    • How can I check the number of PCIe lanes in Windows?
      • You can check the number of PCIe lanes in Windows using the device manager by following these steps:
        1. Right-click on the Start button and select “Device Manager.”
        2. In the Device Manager window, expand the “System Devices” category.
        3. Look for an entry named “PCI Express Root Port” or “PCI Express x16 Port” (the exact name may vary depending on your system).
        4. Double-click on the “PCI Express Root Port” entry to open its properties.
        5. Go to the “Advanced” tab, and you should see information about the number of “Current Link Width” or “Max Link Width.” This value represents the number of PCIe lanes currently used by the port.

General Notes



Published in General
Read more...
Friday, 18 July 2025 13:12

USB to ISO, ISO to USB, Bootable ISO

This will cover a lot of topics to do with ISO and burning.

Software

  • Burners / Authoring
    • ImgBurn
      • ImgBurn is a lightweight CD / DVD / HD DVD / Blu-ray burning application that everyone should have in their toolkit... and it's free!
    • AnyBurn
      • A light weight but professional disc burning, imaging, and bootable USB drive creation software
    • ShapeISO
      • A free and excellent ISO editor software that helps you burn, extract and create ISO image files on Windows computers.
    • PowerISO
      • Create, Burn, Mount, Edit, Compress, Encrypt, Split, Extract ISO file, ISO/BIN converter, Virtual Drive.
      • PowerISO is a disk image utility that can open, burn, create, edit, compress, encrypt, mount and extract ISO files.
      • PowerISO comes with some unwanted programs (PUP) but you can simply turn off the internet in your PC (switch off WiFi or Ethernet) before installing PowerISO and it will skip the installation of the PUP.
      • Menu: Tools --> Create ISO from USB
  • USB <--> Image
    • Rufus
      • Create bootable USB drives the easy way
      • Rufus can format a USB drive in the following partition schemes/formats
        • MBR
        • GPR
        • Super Floppy Disk
      • How to create bootable USB drive for Windows 11 with Rufus (2025) - Pureinfotech
        • Rufus lets you create a bootable Windows 11 USB for supported and unsupported hardware. Also, it offers the option to download the ISO file.
        • Create a bootable Windows USB drive with modifications.
      • How to Use Rufus: A Complete Guide | UUByte
        • Rufus is a popular free software for creating bootable USB. Do you know how to use it? This is a complete guide for using Rufus.
        • Rufus is best known for its ability to create bootable USB drive by burning ISO image to USB. However, it's more than that. In fact, you can use Rufus to create a non-bootable BIOS or UEFI device with GPT or Super Floppy Disk partition scheme. Also, you can format USB device as NTFS, FAT32, or UDF, adjust the volume label, and set your own cluster size.
      • Do you plan to add USB → ISO creation support? - FAQ · pbatard/rufus Wiki · GitHub
        • i.e. Do you plan to allow a feature that can reverse what Rufus does when converting a bootable ISO to bootale USB, so that a bootable ISO can be created back again?
        • This was added in Rufus 4.10. If you show the advanced drive properties, and you have a compatible USB or VHD drive selected, then you can click the "save" icon next to it to save the drive content to an ISO.
        • Also note that you can already use Rufus to create a VHD/VHDX image anyway (see the relevant entry in this FAQ), which, in most cases, is probably what you are really after. Rufus will happily open and write .vhd/.vhdx images just like it can open .iso images.
    • ISO to USB
      • ISO to USB is a free and small software that can burn the ISO image file directly to the USB drives, these USB drives include USB flash drives, memory sticks and other USB storage devices, it also supports to create a bootable USB disk with Windows operating systems.
      • The ISO image file is a popular image of the CD/DVD discs, an ISO file can include all the content on the disc, this software can easily burn these ISO files to a USB flash disk, makes it easy to carry and use.
      • This software currently only support Windows bootable disk, can work with both BOOTMGR and NTLDR boot mode, can create USB disk with FAT, FAT32, exFAT or NTFS file system. (When you are making a bootable USB disk, suggest you choose the FAT32 file system.)
    • balenaEtcher - Flash OS images to SD cards & USB drives
      • A cross-platform tool to flash OS images onto SD cards and USB drives safely and easily. Free and open source for makers around the world.
    • EaseUS Todo Backup
      • This software can create a bootable USB drive and put ISO on USB drives. It also helps in creating an image of a USB drive and putting ISO on USB drives.
      • An easy-to-use free data backup software for Windows 11/10 users to back up photos, music, videos, documents, system, etc. for PC users.
  •  Builders
  • Converters
    • IMG to ISO
      • IMG to ISO is a free small software utility, as its name suggests, it can convert the IMG image files into the ISO image files.
      • The IMG is an disk image file format, it be used by some virtual drive software, Its file extension is generally .img or .ima. The ISO format seems to be more popular than IMG format now, So, if you want to convert your IMG files into ISO files, this little software just helps you.
    • The ISO format file that is created by this program can conform to the standard ISO-9660 format. You can also use this software to open *.ima files

Tutorials

  • Extracting Boot Sector from ISOs
    • Extracting boot sectors from Windows ISOs | BetaArchive
      • Bootsector is not stored in the files, but in the image itself...
      • How to manually extyract the boot sector:
        1. Download and install 7-ZIP 9.20 from: http://www.7-zip.org/
        2. Open a bootable Windows 2000/XP ISO file with 7-ZIP.
        3. There is a folder named [BOOT].
        4. Go in into [BOOT].
        5. The boot sector file is named "Bootable_NoEmulation.img".
        6. Extract this bootsector.
        7. Rename Bootable_NoEmulation.img to BOOTSECT.BIN
        8. Copy your Windows Whistler PE CD to your hard disk e.g. "C:\WINPE"
        9. Place BOOTSECT.BIN in the folder "C:\WINPE\I386".
        10. Then use a application that will create your bootable ISO file.
    • Extracting floppy boot image from ISO with dd? | GRC Public Forums
      • I know there are utilities that can extract the boot image from a CD ISO which can then be used to create a boot floppy or another bootable CD ISO. Anyone know if the differences in the boot header for a bootable FreeDOS floppy image, CD ISO or USB ISO is the sector number where the boot code is located?
      • That being said, on Windows I have used 7-zip to extract the boot file. 7-zip shows it in a special folder called "[BOOT]".
        If you install 7-zip on Linux (p7zip-full) you can use the 7z command to extract the file:
        7z e isofile.iso '[BOOT]'
      • Mentions balenaEtcher for making USB drives.
    • How to Extract Boot Sector Information from a Bootable DVD | Tom's Hardware Forum
      • Use UltraISO with these instructions to extract the .BIF file.
      • The bootable disc has a .BIF file i.e. boot information file which is responsible for booting the disc from a removable storage. Every bootable disk, thus, has a .BIF file that makes it bootable. The difference between a normal installation disk and a boot time installation disk lies mainly in the boot information sector.
    • Boot Image Extractor - How to extract boot image from CD/DVD? | WinISO - WinISO is a powerful ISO Extractor, which can extract not only ISO image file but extract the boot image file if you desired.
  • Create a Bootable USB
  • Bootable USB to ISO
    • How to Convert Bootable USB to an ISO Image (Tutorial) - YouTube
      • In this tutorial video, I'll show you How to Convert Bootable USB to an ISO image. So, if you've been wondering how to create an ISO image file from files and folders, this video is for you as I'll take you through the entire process step-by-step.
      • AnyBurn, ImgBurn
    • 2 Timeless Ways to Convert Bootable USB Drive to ISO
      • Due to some reason, you need to convert bootable USB to ISO. Then you can refer to the methods offered in this post to complete the operation.
      • ImgBurn, AnyBurn
    • How to Convert Bootable USB to ISO (windows 10/11)
      • You created a bootable USB of Windows 11, 10, or even 8.1 after downloading it. Then you deleted the ISO file to make space on the partition since we have the bootable. Now you want to create another bootable but the original ISO is missing. No worries as you can convert bootable USB to ISO.
      • ImgBurn
    • 2 Free Ways to Convert Bootable USB to ISO on Windows 10
      • How to convert bootable USB to ISO in Windows 10? Here you can know how to easily create ISO file from a bootable USB for free.
      • Sometimes you may need to create an ISO file from bootable USB for some purpose. Here this article will show you how to easily convert bootable USB to ISO on Windows 10 with 2 ways for free.
      • ShapeISO, AnyBurn
    • How to Convert Bootable USB to ISO
      • Converting your bootable USB to an ISO can save you from these headaches. If you delete the original ISO after making the bootable USB, you will have to redownload it later. It’s easy to convert a bootable USB to ISO on Windows; here are the two best ways to do it.
      • AnyBurn, ImgBurn
    • How to Create ISO Image from USB with USB to ISO
      • What is an ISO file? Are you looking for a way to create ISO image from USB? This article will tell how to create an ISO from USB drives on Windows 11/10/8/7.
      • EaseUS Todo Backup, Rufus, DISM
    • Make Bootable ISO Image from a Bootable USB Drive
      • Learn how you can create a bootable ISO image using a bootable USB drive (with Windows installation files on it) very easily.
      • Extract the .BIF from an existing Bootable ISO and use that.
      • PowerISO
    • DiskGenius focused
      • Create an .iso out of a bootable USB stick? | Ventoy Forum
        • e.g. the software DiskGenius (https://www.diskgenius.com) can only create a bootable USB stick (UEFI and BIOS), but not an .iso that I could use with Ventoy directly.
        • Just copy the boot.wim file to the Ventoy USB disk and boot to the boot.wim directly from Ventoy - no need to make an ISO. You will need to add Wimboot Plugin too.
        • Plugin.wimboot . Ventoy - Ventoy use this plugin to boot WIM files (Legacy BIOS + UEFI).
      • Recommendations for bootable ISOs to add to Ventoy | Windows 11 Forum
        • Q: I have not yet discovered an easy way to convert a bootable USB drive to a bootable ISO. Many utilities that claim to do this are getting long in the tooth - i.e 2012 or 2016 and I'd like to use more recent apps.
        • A: There are a few methods and techniques on this thread so I will just summarise them.
          • oscdimg (Page 1)
            oscdimg.exe -m -o -u2 -udfver102 -bootdata:2#p0,e,bd:\iso_files\boot\etfsboot.com#pEF,e,bd:\iso_files\efi\microsoft\boot\efisys.bin d:\iso_files d:\14986PROx64.iso

becomes

oscdimg.exe -m -o -u2 -udfver102 -bootdata:2#p0,e,bE:\boot\etfsboot.com#pEF,e,bE:\efi\microsoft\boot\efisys.bin E:\ C:\users\myname\myiso.iso

You can create a one line batch file to do above.
          • You could use cdimage, oscdimg or mkisofs which are command line tools, Or you can use, Lancer, which has a GUI  (Page 1)
          • Copy the DiskGenius WIM to the Ventoy disk and boot from that. (Page 1)
          • Windows-isomaker_x64_x86_sha256.zip (Page 1)
          • isomaker.zip  (Page 1)
          • mkisofs Linux (Page 1)
            sudo mkisofs -o /path/to/image. iso /dev/sdb
            • replacing /path/to/image. iso with the desired location and name of your ISO file and /dev/sdb with the device name of your USB drive.
          • isomaker-DISKGENIUS.zip (Page 2)
            • Lancer _x64 wont work for the unusual construction of diskgenius boot media.
            • I have done a special one for diskgenius.
            • Instructions
              • Copy and paste the diskgenius usb stick to a hard drive.
              • Rt click the usb stick and select copy. Rt click on a hard drive partition and select paste.
              • So you have a folder e.g. C:\DISKGENIUS ( it will have the same name as the usb stick)
              • then run the .cmd file and browse to C:\DISKGENIUS
              • Do not browse to a sub folder inside C:\DISKGENIUS
            • I made a diskgenius usb stick and tested the above .
          • Boot from the WIM (Page 2)
            • You really only need to copy the file Boot.wim from the folder DiskGenius - Boot (and optionally rename the file to something like, e.g., DiskGenius 5.5.1.1508 x64.wim to make it easier for you to see what exactly this one is) to the root of the VENTOY partition that's on your USB flash drive. Aside from this, you also need to make sure that you have installed the Wimboot plugin for Ventoy before you boot from the USB flash drive. (For this, you need to create a new folder named ventoy in the root of the VENTOY partition, and then copy the file ventoy_wimboot.img into this folder like has been explained here.)
          • Use an existing Bootable ISO (Page 3)
            • Using something like the free anyburn, edit a known working iso file (e.g. your macrium iso file ).
            • Replace the \sources\boot.wim in the known working iso with the boot.wim from your diskgenius usb stick.
            • Then save the iso as a new name, e.g. diskgenius.iso
            • NB: I have not tried this.



Published in General
Read more...
Friday, 18 July 2025 13:11

Disk Image Handling

Glossary

  • P2V
    • (Physical-to-Virtual) conversion
    • P2V converts a physical server's operating system, applications, and data into a virtual machine format (like VMDK).
  • V2V
    • (Virtual-to-Virtual) conversion
    • the process of migrating a virtual machine (VM) from one virtualization platform to another.
  • Fixed Disk / "Thick" Provisions
    • These disk images are a set size and are never changed. They are roughly the size of the disk defined in the image.
  • Dynamic Disk / Growable / "Thin" Provisioned / "Sparse" Provisioned
    • the disk image file size can change and is not directly related to the size of the defined virtual disk it holds.
  • OVA/OVF
    • These are not disk images, but a standard to allow moving of virtual machines between platforms.
    • Deploy and Export OVF and OVA Templates
      • You can export virtual machines, virtual appliances, and vApps in Open Virtual Format (OVF) and Open Virtual Appliance (OVA). You can then deploy the OVF or OVA template in the same environment or in a different environment.
    • How To Convert Virtual Machines Between VirtualBox and VMware
      • Migrating to another virtual machine program can be intimidating.
      • If you use an ova extension, then all of the files will be combined into one Open Virtualization Format Archive.
      • If you use an ovf extensions, several files will be written separately.
  • Super Floppy
    • This is the term given to a type of USB formating where it has the following features:
      • No MBR
      • No Partition Table
      • 1 Partition that takes the whole of the drive
    • The term "super floppy" can be a bit ambiguous, but generally, when people refer to a "super floppy" in the context of USB drives, they often mean a removable drive (like a USB flash drive) that does not have partitions, behaving more like a traditional floppy disk. Some older disk management utilities, like Acronis Disk Director, might label such drives as "Super Floppy."
  • Boot Sector
  • Master Boot Record (MBR)
    • The MBR is physically the first sector of a data medium (e.g. hard drive or USB stick), which is used by computers for the booting, or start-up process. The computer must be equipped with a BIOS and a x86 operating system.
    • The searches for the active partition and then load the VBR
    • The MBR code is OS specific.
    • This is placed in the boot sector of a drive
    • Volume boot record - Wikipedia
      • A master boot record (MBR) is a type of boot sector in the first block of partitioned computer mass storage devices like fixed disks or removable drives intended for use with IBM PC-compatible systems and beyond. The concept of MBRs was publicly introduced in 1983 with PC DOS 2.0.
      • The MBR holds the information on how the disc's sectors (A.K.A. "blocks") are divided into partitions, each partition notionally containing a file system.
      • The MBR also contains executable code to function as a loader for the installed operating system—usually by passing control over to the loader's second stage, or in conjunction with each partition's volume boot record (VBR). This MBR code is usually referred to as a boot loader.
    • MBR (Master Boot Record) explained - IONOS UK - The master boot record is a vital piece of code for many PCs to start up. But how does it work, how is it structured and how can it be repaired if necessary?
    • What’s in the MBR?
      • First 446 bytes: Bootloader code
      • Next 64 bytes: Partition table
      • Last 2 bytes: Boot signature (should be 0x55AA)
      • NB: this is first 512 bytes on a physical drive.
  • Volume Boot Record (VBR)
    • This is where Windows/OS start to load.
    • The VBR is a file with a specific file name in a specific location.
    • The VBR code is OS specific.
    • The VBR for Windows is a file in the root called: BOOTMGR
    • Volume boot record - Wikipedia
      • A volume boot record (VBR) (also known as a volume boot sector, a partition boot record or a partition boot sector) is a type of boot sector introduced by the IBM Personal Computer.
      • The code in volume boot records is invoked either directly by the machine's firmware or indirectly by code in the master boot record or a boot manager. Code in the MBR and VBR is in essence loaded the same way.
  • Windows Boot Manager
    • Windows Boot Manager - Wikipedia
      • The Windows Boot Manager (BOOTMGR) is the bootloader provided by Microsoft for Windows NT versions starting with Windows Vista and Windows Server 2008. It is the first program launched by the BIOS or UEFI of the computer and is responsible for loading the rest of Windows. It replaced the NTLDR present in older versions of Windows.
      • The boot sector or UEFI loads the Windows Boot Manager (a file named BOOTMGR on either the system or the boot partition), accesses the Boot Configuration Data store and uses the information to load the operating system through winload.exe or winresume.exe on BIOS systems, and winload.efi and winresume.efi on UEFI systems.
      • On system with BIOS firmware, the BIOS invokes MBR boot code from a hard disk drive at startup. The MBR boot code and the VBR boot code are OS-specific. In Microsoft Windows, the MBR boot code tries to find an active partition (the MBR is only 512 bytes), then executes the VBR boot code of an active partition. The VBR boot code tries to find and execute the bootmgr file from an active partition.[3]
      • On systems with UEFI firmware, UEFI invokes bootmgfw.efi from an EFI system partition at startup, starting the Windows Boot Manager.
  • Operating System Boot Loader.

UEFI / MBR Boot Procedure

  • Windows MBR Boot Procedure
    • MBR is loaded into RAM by the firmware.
    • MBR searches for an active partition
    • MBR loads the Windows Boot Manager (BOOTMGR / VBR) from the active paritition.
    • Windows Boot Manager now loads the Windows Boot loader from one of these locations:
      \windows\system32\winload.exe
\windows\system32\boot\winload.exe
    • Windows now loads
  • Windows EFI Boot Procedure
    • UEFI invokes the Windows Boot Manager from an EFI system partition (ESP) at startup,
      \EFI\Microsoft\Boot\bootmgfw.efi
    • A user can make an OS selection now, or the default OS is loaded. These settings are defined in the BCD.
    • Windows Boot Manager now loads the Windows Boot loader from one of these locations.
      \windows\system32\winload.efi
\windows\system32\boot\winload.efi
    • Windows now loads

Links

USB Drives

USB drives:

  • behave similiar to Hard Drives (HDD/SSD/NVMe).
    • can be partitioned.
    • can be made bootable
    • access sectors/data via standard LBA methods.
  • do not have the HDD demulation that a CD-ROM/ISO as it is not required.
  • can use a SuperFloppy format that it allows it to be loaded as a large floppy disk (this is just a specialised partition layout).
  • have their Removable Media bit (RMB) set, which is a hardware flag showing the device is removable device. This is used so the OS knows how to correctly handle the drive.

Some BIOSes have a feature where a USB drive can be:

  • mounted and then presented as a HDD to older OS.
  • mounted as a floppy disk.

Image Formats

  • VHD (deprecated)
    • (Microsoft Virtual PC Virtual Hard Disk)
    • Azure (requires fixed size), Virtual PC,
    • Developed by Microsoft
    • Does Azure use VHD or VHDX? - Darwin's Data - Azure supports both VHD and VHDX disk formats for virtual machine disks. The choice between VHD and VHDX depends on the specific scenario and requirements.
    • VHD should not be used for new systems.
    • What is a VHD File? (Unpacking Virtual Hard Disk Mysteries) - Discover how Virtual Hard Disk (VHD) files revolutionize computing by simplifying management of multiple operating systems and enhancing efficiency.
  • VHDX
  • VMDK
    • (VMware Virtual Disk File)
    • VMware and ESXi
  • VDI
    • (VirtualBox Virtual Disk File)
    • VirtualBox
  • QCOW (deprecated)
    • KVM type Virtual Machines (old format, deprecated)
  • QCOW2
    • KVM type Virtual Machines
  • HDD,HDS
    • (Parallels Desktop Virtual Disk File)
    • Parallels
  • DD
    • These are created by the Linux command dd.
    • This is a binary blog, made by copying the RAW bits, and therefore is file system agnostic.
  • IMG
    • (Disk or Partition Image File)
    • This binary blog, made by copying the RAW bits, and therefore is file system agnostic.
    • IMG (file format) - Wikipedia
      • The .img file extension was originally used for floppy disk raw disk images only. A similar file extension, .ima, is also used to refer to floppy disk image files by some programs. A variant of raw image, called IMZ, consists of a gzipped version of a raw floppy disk image. These files use the .imz file extension, and are commonly found in compressed images of floppy disks created by WinImage.
      • QEMU uses the .img file extension for a raw image of a hard disk drive and calls the format "raw".
    • An .img file is just a raw disk image, a sector-by-sector copy of a storage device (like a hard drive, SSD, USB stick, etc.). It doesn’t have a special format; it’s literally just the binary contents of a disk.
    • .img was not a format invented by dd, it’s just a raw image file — a byte-for-byte copy of a disk.
  • IMA
    • (Virtual Floppy Disk Drive)
    • This is a binary blog, made by copying the RAW bits, and therefore is file system agnostic.
  • IMZ
    • GZipped (Virtual Floppy Disk Drive)
  • RAW
    • This is a binary blog, made by copying the RAW bits, and therefore is file system agnostic.
  • BIN
    • This is a binary blog, made by copying the RAW bits, and therefore is file system agnostic.
  • WIM
    • Microsoft Windows Image File
    • This is used to hold a Windows operating system and various other task.
    • This is not strictly a Disk Image file but can behave like one.
  • PHVD
    • Paragon
  • PMFX
    • DiskGenius
  • E01
    • EnCase
  • AFF
    • (Advance Forensics Format)
  • EWF
    • (Expert Witness Compression Format)
  • FFU

Software

There will be cross over between software functionality and their category.

Conversion (V2V and P2V)

Resizing

  • VhdResizer | Softpedia
    • A small and straightforward Windows utility designed to help users to shrink or expand the volumes of VHD files. Made in 2007.
    • How to Resize a Microsoft Virtual Hard Drive (VHD) File - When you create a Microsoft Virtual Hard Drive either through Virtual PC or Virtual Server, you have to specify the maximum size of the file up front.
  • VhdxTool
    • VhxdTool is a command line utility for Windows for quick creation and resizing of virtual hard disk files (VHDX).
    • This offers similar functionality to a former program vhdtool for Windows Server 2008/R2, but while vhdtool worked with older (VHD) format, vhdxtool works with the new (VHDX) format.

Compacting

  • vboxmanage
  • wslcompact
    • Compacts the size of the ever-growing WSL vhdx images.
    • Compacting the size of the ever-growing WSL images · microsoft/WSL · Discussion #9566 · GitHub
      • Give the usage commands of the tool.
      • Using virtual drives is a great idea. But, ext4 filesystem optimization inside VHDX images is not so well supported by the optimization tools. NTFS partitions are well optimized, but ext4 partitions are not so well optimized, and WSL suffers from this problem.
      • Since WSL doesn't provide a good solution for this, I have coded a small utility wslcompact that compacts the WSL partitions.
      • Any thoughts on improving the tool would be welcome. However, it would be better if the WSL team releases something similar. A good improvement would be an improvement in the export function, not only making a copy of the VHD file but dumping the contents in a newly created VHD, which would considerably reduce the size of the backup.
  • Optimize-VHD (Hyper-V Management Tools)
    • Needs Hyper-V to be installed.
      Optimize-VHD -Path "Path\To\Your\VHDfile.vhdx" -Mode Full
  • DISKPART
    • Always present in Windows.
    • Optimize-Vhd doesn't require diskpart, of course, both processes can do more or less the same regarding drive compaction. Diskpart is somehow more convenient as it is readily available in all systems without the need for installing any extra package.
    • diskpart | Microsoft Learn - Reference article for the diskpart command interpreter, which helps you manage your computer's drives.
    • Compact a VHD file created by Disk Management? - Super User
      • You can then complete the compacting using diskpart from a Command Prompt
        1. Run diskpart
        2. Select the disk via its path: select vdisk file="<path>"
        3. Attach it as read-only: attach vdisk readonly
        4. Compact it: compact vdisk
        5. Upon completion of the compact, detach it again: detach vdisk

Image Creation (Disk)

  • DiskGenius: Data Recovery, Partition Manager, Backup & Disk Utilities
    • This software handles a variety of formats (.vmdk, .vhd, .vhdx, .vdi, .hdd, .img) but is read only in the free version, this means you cannot backup a drive to one of these formats with the free version. There is a proprietary DiskGenius disk image format (.pmfx) you can use for normal disk operations.
    • The paid version will also allow you to convert between the various Disk Image formats
    • You can also browse the files on disk images.
  • DiskImager
    • A simple but powerful tool for saving and writing disk images.
    • Save raw binary images of any disk as regular files.
    • Write disk images to physical disks.
    • When writing an image to a disk, supports industry-standard disk image formats (in addition to raw images), including VDI (VirtualBox), VMDK (VMware), E01 (EnCase), and VHDX/VHD (Virtual hard disk).
  • MultiDrive
    • 100% free disk management software for Windows. Clone, backup, restore, and erase drives with ease.
    • Allows you to create IMG of drives and I think also USB Drives.
  • dd (Linux)
  • OSFClone
    • OSFClone is a free, open-source utility designed for use with OSForensics. OSFClone is a self-booting solution which lets you create or clone exact, forensic-grade raw disk images.
    • OSFClone is a free, self-booting solution which enables you to create or clone exact raw disk images quickly and independent of the installed operating system. In addition to raw disk images, OSFClone also supports imaging drives to the open Advance Forensics Format (AFF), AFF is an open and extensible format to store disk images and associated metadata, and Expert Witness Compression Format (EWF). An open standard enables investigators to quickly and efficiently use their preferred tools for drive analysis.

Image Creation (USB)

  • Rufus - The Official Website
    • Rufus is a small application that creates bootable USB drives, which can then be used to install or run Microsoft Windows, Linux or DOS.
    • This app also allows you to create disk image files (VHD/VHDX) of any USB pendrives plugged in.
      • Rufus uses DD (or windows equivalent) to image the drive to a VHD/VHDX.
        • This creates a "RAW" image as all bits are read `As-Is` and then recorded into the image irrelevant of whether they are files, empty space or random bits.
        • Being raw, they are fully equivalent to a block-for-block disk image.
      • Rufus produces Fixed (Pre-Allocated) VHD images.
        • The image is the same size as the USB drive.
        • The file size cannot be reduced because it's size is fixed.
        • Reclaiming free space will not reduce the image size.
      • Rufus produces Dynamic (Growable) VHDX images
        • Because it is made from a raw DD copy, all sectors are used.
        • The image is the same size as the USB drive.
        • To reclaim free space you need to
          • Internaly recover the free space from the virtualised drive
            • Zero out sectors or
            • Mount the image and have a live OS TRIM the drive
          • Compacted the disk image.
            • Have an external program (file aware) compress the image file by removing all of the references to free thus reducing the VHDX image file size.
    • Disk Format information
      • When you create a VHD(X) with Rufus, it effectively changes media state from removable (USB) to non-removable (HDD) as this is what is defined in the header that Rufus attached to the binary image it has just created.
      • This is an AI analysis of the rufus disk mounting process
        • Virtual Disk Handling | pbatard/rufus | DeepWiki
          • The Virtual Disk Handling system in Rufus provides capabilities for working with virtual disk files and disk images.
          • This includes mounting and analyzing VHD/VHDX files, handling Windows Imaging Format (WIM) files, and supporting various compressed disk image formats.
          • Virtual disk handling enables Rufus to extract content from these files, analyze their bootability, and use them as sources for creating bootable USB drives.
      • Why does Rufus call a .vhd file a DD Image? - Super User
        • Rufus developer here. This is because the save option is only for uncompressed VHD images, and uncompressed VHD images are just the same as DD images with an extra 512 byte footer added.
        • So, for all purposes, you can use DD to write the VHD image created by Rufus, and it will work just fine (with either the extra 512 byte footer being ignored as random data, if you use a larger sized disk, or being dropped, if using same exact same size disk).
        • Ergo, what Rufus creates when you click the save button is essentially a DD image since it can very much be used as such.
        • PS: For those who wonder why Rufus doesn't compress the VHD images it saves this is primarily due to the compression algorithm being used by Microsoft being very poor (IMO) and therefore not worth spending time implementing support for. This is also part of the reason why save as DD image is only available when clicking the advanced options.
      • Getting Rufus to output to a disk image file - Super User
        • Akeo
          • Rufus can create an uncompressed VHD image from whichever drive you have currently selected, which, for all intent and purposes can be used as a regular DD image (because the only difference with a regular DD image is an extra 512-byte footer, which, no matter how much you may think otherwise, will NEVER EVER come in the way of using the .vhd as a .img).
          • UPDATE: And recent versions can also create compressed VHDX images, that take less space, and that can work the same way.
        • gronostaj
          • Solution 1: Read the image from a prepared flash drive. Win32DiskImager can be used to do this.
          • Solution 2: Prepare your own hybrid ISO. Most of modern Linux distros use so called hybrid ISOs. They are valid ISOs that can be burned to a CD/DVD, but at the same time they are valid disk images that can be written to a flash drive. For example you could feed an Ubuntu ISO to Win32DiskImager and have it write it to disk (Rufus may offer this feature for some ISOs, it calls it "dd mode"). Community documentation on ISO customization is ten to thirteen years old, but may still be useful and you'll find many useful guides all over the Internet.
      • Make image from disc · Issue #1274 · pbatard/rufus · GitHub
        • Aha, then this is my cue to enlighten you:
        • An uncompressed is just a DD image with a 512 byte footer added.
        • Therefore, because writing that footer (or not) is inconsequential, you can absolutely use the .vhd that was created by Rufus as a DD image.
        • Now, in case you have doubts about those extra 512 bytes potentially causing an issue let me explain that:
          • If you are restoring the image to a drive of the exact same size as the one you used to create the VHD, then these 512 bytes will happily be dropped by dd (At least the Linux version of dd doesn't care much if you try to write more data that the drive can hold - it'll report it, but it will not have any kind of impact on the data written), leaving you with a 1:1 copy of the original drive.
          • If you are using a drive that is larger than the one you used to create the VHD, then, even if you are unfortunate enough to have the 512-byte VHD footer fall at the precise location where the GPT backup is located (a few sectors before the end of the drive), then because this is a backup, any modern OS will detect that the backup is corrupted and fix it by duplicating the master, which is located at the beginning of the disk. Oh, and, even when you restore a pure GPT based DD image onto a larger drive, this kind of GPT backup fix needs to happen anyway, since, obviously, the backup GPT from the original image is at the wrong location, and a new backup GPT needs to be created at the right one. In other words, the writing of that 512-byte VHD footer is no different than the case of expecting whatever garbled data one might find at the expected location for the backup GPT when writing a "regular" DD image. And really, even as this is a complete non-issue, the possibility that the VHD footer will fall at the precise location where the backup GPT should go is exceedingly small. Oh, and if your image is using a MBR partition table, then it's even less of an issue, because none of the data up to (size of VHD - 512 bytes) will EVER be seen as accessible from the original image.
        • In summary, and I really have to stress this out, for all purposes, an uncompressed VHD image is exactly the same as a DD image. Therefore you can use the Rufus created .vhd exactly as you would use a standard DD image. There REALLY is no "What if...?" or "But surely..." associated to using an uncompressed .vhd as you would a DD image.
    • Disk image created by Rufus is shown as a Dynamic (Growable) image and not as a fixed (pre-allocated) disk image
      • Why This Happens
        • Rufus does not create truly dynamic (growable) disks. Instead, it writes raw, fully allocated (fixed-size) disk images, even when saving to .vhdx format. But:
          • Rufus doesn't explicitly write the full VHDX metadata headers the same way Hyper-V or Windows Disk Management does.
          • This can cause third-party tools like StarWind to misinterpret the image format or default to "growable" in their interface or assumptions.
        • This might need updating, see: StarWind V2V Converter shows the VHDX image as a Growable Image · Issue #2831 · pbatard/rufus · GitHub
      • Evidence & Explanation
        • StarWind is designed to work with officially structured VHDX files (including all metadata).
        • Rufus writes uncompressed, flat VHDX files but doesn’t necessarily populate all optional VHDX metadata fields.
        • StarWind may detect the structure or size mismatch and label it as "growable" (which usually means "dynamic")—even if it's not actually dynamic.
      • How to Check What It Really Is
        • You can confirm the truth using:
        • PowerShell
          Get-VHD -Path "C:\path\to\your.vhdx"
          • Look for VHDType: Fixed or Dynamic
        • vhdxinfo (from libvhdi)
          vhdxinfo mydisk.vhdx
          • It will show you type: fixed or type: dynamic explicitly.
      • Workaround or Fix
        • If you want the VHDX to be 100% standards-compliant and recognized as "fixed" by all tools (including StarWind), do this:
          1. Mount the Rufus-generated VHDX in Windows.
          2. Create a new fixed-size VHDX using:
            New-VHD -Path "C:\fixed-compliant.vhdx" -SizeBytes 10GB -Fixed
          3. Use dd or xcopy to clone contents to the new disk.
        • This gives you a 100% spec-compliant VHDX that should show as "fixed" in all tools.
  • ImageUSB (PassMark)
    • ImageUSB is an effective tool for writing an image to multiple USB Flash Drives for mass duplication and creating images of thoese drives.
    • ImageUSB is a free utility which lets you write an image concurrently to multiple USB Flash Drives. Capable of creating exact bit-level copies of USB Flash Drive (UFDs), ImageUSB is an extremely effective tool for the mass duplication of UFDs.ImageUSB also supports writing of an ISO file byte by byte directly to an USB drive (*). ImageUSB can also be used to install OSFClone to a USB Drive for use with PassMark OSForensics™.
    • Unlike other USB duplication tools, ImageUSB can preserve all unused and slack space during the cloning process, including the Master Boot Record (MBR). ImageUSB can perform flawless mass duplications of all UFD images, including bootable UFDs.
    • ImageUSB includes functionality to Zero a USB Flash Drive. This will replace the contents of the entire drive with 0s. Or alternatively to just Zero the MBR and/or GPT entries that exists on the drive. In addition, imageUSB has the ability to reformat even hard to format drives and reclaim any disk space that may be lost previously.
    • (*) CD ISO images use a different file systems compared to USB drives. So the direct imaging of ISO9660, Joliet or UDF file system, from a CD, to a USB drive, might not allow the USB drive to function in all operating systems. A reformat can recover the drive however. As of V1.5, imageUSB now supports extraction of ISO contents onto USB Drive.
    • Warning: Due to the forensic nature of image duplication by ImageUSB, please ensure that you select UFDs with a storage size similar to the image you wish to duplicate. For example, if a 2GB image is copied to an 8GB USB Flash Drive, the drive will only be able to use two out of the eight gigabytes of storage space. In this scenario, users will need to reformat the UFD in order to access the rest of the storage space.
    • How to Create an Image of Your USB Drive | How-To Geek - You can backup your USB drive by creating a saved image. You can even take that image and clone multiple USB sticks. This guide shows you how to create an image of your USB drive.
  • USB Image Tool – alex's coding playground
    • USB Image Tool can create images of USB flash drives, SD cards and any other devices that are mounted as USB storage drives.
    • It can create an exact byte copy of these devices in raw and compressed image formats and also restores or write images on the device.
    • USB Image Tool works with any device, that implements the USB Mass Storage protocol. This includes flash drives, card readers/SD cards and a lot of other devices like digicams, cell phones and mobile music players.
  • USBImager
    • A really simple GUI application that writes compressed disk images to USB drives
      and creates backups. Available platforms: Windows, MacOSX and Linux. Its interface is as simple as it gets, totally bloat-free.
  • UltraISO
    • This can write images to USB so I am guessing it can make them aswell.

Disk Image Repair software

Other Software

  • sDelete (Secure Delete)
    • SDelete - Sysinternals | Microsoft Learn - Securely overwrite your sensitive files and cleanse your free space of previously deleted files using this DoD-compliant secure delete program.
    • How to use the command 'sdelete' (with examples) - Secure deletion is an essential part of data management and protection, particularly when it involves sensitive information. The command-line tool ‘sdelete’ offers a robust solution by permanently erasing files, directories, or entire volumes, thus ensuring that data cannot be recovered. Developed by Sysinternals, ‘sdelete’ employs advanced algorithms to overwrite data, mitigating the risk of unauthorized data access. Below we explore various use cases, each tailored to different secure deletion needs.
    • Meet Sdelete, the obscure Microsoft tool that wipes data for good | PCWorld - Sdelete, short for Secure Delete, is a powerful but little-known tool from Microsoft's Sysinternals suite that permanently wipes files and folders by overwriting data.
    • How to use SDelete to ensure deleted data is gone for good | TechTarget - Standard delete functions aren't good enough to guarantee data is gone for good. Learn how to use SDelete to ensure your information is removed permanently.

Mounting and Managing Images (in Windows)

  • Windows
    • It can mount WIM, VHD and VHDX natively.
    • You can use 7zip to open WIM files.
    • Mount-WindowsImage (Dism) | Microsoft Learn - Mounts a Windows image in a WIM or VHD file to a directory on the local computer.
    • How To Mount and Update Windows Image Files (WIM) | KC's Blog
      • Using Microsoft’s own Windows Image Files (WIM) format, it’s also easy to mount to not only read but update files in the image file
      • Example
        ## Mount WIM
DISM /Mount-Wim /WimFile:"d:\boot.wim" /index:1 /MountDir:"d:\chicken"

## Make changes

# Unmount WIM (Discarding Changes):
DISM /unmount-wim /MountDir:"d:\chicken" /discard

# Unmount WIM (Keeping Changes):
DISM /unmount-wim /MountDir:"d:\chicken" /commit
  • Arsenal Image Mounter
    • Arsenal Image Mounter mounts the contents of disk images as complete disks in Windows.
  • FTK Imager - Forensic Data Imaging and Preview Solution | Exterro
    • A free data preview and imaging tool used to acquire electronic evidence in a forensically sound manner by creating copies of computer data without making changes to the original evidence.
    • With FTK Imager, you can create forensic images of local hard drives, CDs and DVDs, thumb drives or other USB devices.
    • Mount an image for a read-only view that leverages Windows® File Explorer to see the content of the image exactly as the user saw it on the original drive.
  • OSFMount - Mount Disk Images & Create RAM Drives
    • The free OSFMount tool mounts raw disk image files in mulitple formats. You can also create RAM drives. Formats supported include img, dd, E01, VHD, ISO & bin
    • Instructions
      • Step 1 of 4: Just select your disk image, do not mount as ram disk
      • Step 2 of 4: Mount entire image as virtual disk
      • Step 3 of 4: Skipped by the software, must be something to do with partition detection.
      • Step 4 of 4:
        • Read-only drive: Optional, but readonly keeps the original image clean
        • Write mode: Write cache
        • Drive emulation: Physical Disk Emulation = we need this for the boot sector
        • Drive type: HDD
      • NB:
        • In Starwind, your virtual disk will be listed as real disk called osfdisk
        • If you mount as FDD (possible a super floppy mode) Starwind will not see the drive.
    • OSFMount - What is the difference between logical and physical drive emulation modes:
      • In OSFMount, the difference between logical and physical drive emulation lies in how the mounted image is presented to the operating system:
        • Logical Drive Emulation
          • What it is: Mounts a partition within a disk image as a drive.
          • Use case: When you're only interested in accessing a specific partition (e.g., a file system like NTFS or FAT32).
          • Example: Mounting just the C: partition from a full disk image.
          • Visible as: A standard drive letter in Windows (e.g., D:, E:).
          • No boot sector or MBR is emulated—just the file system content.
          • Faster and simpler for common use cases like extracting files.
        • Physical Drive Emulation
          • What it is: Mounts the entire image as if it were a real physical disk, including the MBR, partition table, and all partitions.
          • Use case: When you need to work with the full disk structure (e.g., for forensic analysis or imaging software that requires MBR access).
          • Visible as: A physical disk (not a drive letter), usually accessed via disk management tools or forensic software.
          • Can emulate multiple partitions, raw sectors, boot records, etc.
          • Slower and more resource-intensive, but gives low-level access.
      •  Forum
        • OSFMount decides automatically whether to use physical or logical emulation based on the presence of a partition table in the image.
        • OSFMount shall automatically mount using Physical Drive or Logical emulation based on whether the image file contains a partition table or not
      • Another forum post clarifies the difference in practical terms:
        • Logical emulation: mounts only the file system as a volume — you get a drive letter but no low-level disk access..
        • Physical emulation: mounts the entire disk, including all sectors and partitions — useful for low-level forensic or VM boot tasks
  • VMware Workstation / Player
  • VMware/VMDK Additional
    • 4 Ways to Mount a VMDK Image File in Windows | KC's Blog - If you have a VMDK file that hosts one or more VM partitions, here are 4 ways to get it mounted in Windows as a disk drive.
      VMware Workstation
vmware-mount.exe X: “C:\Temp\TestVM.vmdk”
    • Exact Steps to Map VMware Disk to Windows Disk
      • For some reason, you may want to mount VMware disk to Windows disk. If so, take a look at this post where 3 available methods are offered.
        • Mount VMware Disk to Windows Disk via VMware Workstation
        • Mount VMware Disk to Windows Disk via Disk Mount Utility
        • Mount VMware Disk to Windows Disk via vSphere Disk Development Kit
    • How to Open VMDK File in Windows 11
      • This guide shows you how to open a VMDK (Virtual Machine Disk) file in Windows 11 and access the contents in it using VMware Workstation or 7-Zip file archiver.
  • Image Mounter | Paragon Software Group
    • Image Mounter helps IT pros and forensic experts mounting raw images as well as virtual drives.
    • Mount RAW images and a plethora of virtual disk images
    • Mount disks on the physical level with all partitions
    • Auto-mount partitions in familiar OS formats
    • Leverage cross-platform compatibility delivered by the Paragon technology.
    • The preview version of Image Mounter by Paragon Software is available free of charge!
  • VMFS Recovery | DiskInternals
    • This is primarily a image recovery utility but can mount VMDK image files.
  • WinMount - Compress & Mount RAR ZIP CD DVD HDD images (this is very old)
    • Winmount is a powerful windows utility which is dedicated to managing files and disks impressively and conveniently.
    • It's a compression tool, also a virtual disk tool ( Mount RAR ZIP MOU and CD DVD HDD images as virtual disk/folder ).
    • Supported formats:MOU, RAR, ZIP, 7Z, CAB, ARJ, ISO, GZ, BZ2, TAR, WIM, ISO, BIN, BWT, MDS/MDF, NRG, IMG, ISZ, CUE, CCD, APE, FLAC, WV, VHD, VDI, VMDK.
  • DAEMON Tools Lite: The most personal application for disc imaging yet - DAEMON-Tools.cc
    • A well-known solution that allows you to mount, copy and create an image. It works with the most popular types of virtual discs.
    • DAEMON Tools Lite allows you to mount all known types of disc image files and emulates up to 4 DT + SCSI + HDD devices.
    • It enables you to create images of your optical discs and access them via well-organized catalogue.
  • Simple VHD Manager v1.5
    • A portable freeware which helps VHD users simplify some of these operations:
      • You can attach and detach VHD/VHDX/ISO files via drag and drop
      • You can permanently attach a virtual hard disk in Windows 11 – 10 – 8,1 – 8 and Windows 7
      • You can easily add and/or remove VHD/VHDX/ISO files to the boot menu
  • Mount and Unmount a VHD File in Windows Explorer via a Right-Click
    • Virtualization has become an incredibly powerful and flexible way to deploy environments. So much in fact that Microsoft has integrated the ability to attach virtual hard drive (VHD) files as physical disks in the Windows Disk Management tool.
    • This process is easy enough to do manually but if you attach VHD files often then we have a solution which enables you to mount and unmount VHD files with a single click.
    • This article has batch scripts you can attach to the context menu to allow easy use of the right click feature.

Best Practices

  • Fixed vs Dynamic disks - Microsoft Q&A - Hi Can anyone point me to a link that shows the correct official guidance from Microsoft as to if fixed or dynamic VHD's or VHDX's should be used in a production enviroment? Thanks

Tutorials

  • Create from Scratch
  • Export/Import Virtual Machines
  • Shrinking and Compacting
    • How to Shrink and Compact VHDX Files in Hyper-V? | Vinchin Backup
      • This article serves as a comprehensive tutorial on managing VHDX disk space in Microsoft Hyper-V environments.
      • It differentiates between shrinking and compacting VHDX files, outlines the advantages of the VHDX format over the older VHD, and provides detailed steps to perform both shrink and compact operations using both Hyper-V Manager and PowerShell commands.
    • How to Shrink and Compact Virtual Hard Disks in Hyper-V | TheWindowsClub - In this post, we will see how to shrink and compact hard disks in Hyper-V. This allows you to make room for the hard disks if they are too big for your physical computer. Since Hyper-V hard disks are usually dynamic in nature, it is crucial to shrink and compact virtual hard disks in Hyper-V.
    • How to Shrink the Virtual Disk of a Linux Distro in WSL | by bonguides.com | Medium - When you delete files or free up space in your WSL distribution, the virtual disk doesn’t automatically shrink. To reclaim this unused space, you need to compact the virtual disk (VHDX) file.
      • Diskpart
        • Open PowerShell (Terminal) as administrator then type diskpart and press Enter
        • Use the following command, replacing the path with the actual location of your VHDX file to select the VHDX file.
          select vdisk file=""
        • Once the disk is selected, run the below command within the DiskPart prompt to shirk the disk. This will reclaim the unused space in your VHD file. You should see a message indicating that the disk has been successfully compacted
          compact vdisk
        • After the process is complete, you can check the size of the VHD file to confirm that it has been reduced.
      • Hyper-V
        1. Open PowerShell as administrator, then navigate to the location of the VHD file
        2. Run the following command to compact the VHD file:
          Optimize-VHD -Path .ext4.vhdx full
        3. You can monitor the processing status on the screen. After completion, verify the virtual disk size to confirm functionality.
      • WSLCOMPACT
        • Install it using the below PowerShell commands:
          Set-ExecutionPolicy RemoteSigned -Scope CurrentUser
iwr -useb https://raw.githubusercontent.com/okibcn/wslcompact/main/setup | iex
        • Run the wslcompact command to see the current size and estimated size of all WSL instances.
        • Run the below command to compact the disk and apply the change to the VHD file.
          wslcompact -c ubuntu
        • If the tool is no longer needed, to remove the utility, close all your PowerShell instances, open a fresh one, and type:
          Remove-Item "$($env:PSModulePath.split(';')[0])/WslCompact" -Recurse -Force
    • Shrink and Compact Virtual Hard Disks In Hyper-V (Guide) - If your Hyper-V environment starts running low on disk space, find out how to shrink and compact virtual hard disks in this step-by-step guide.
    • How to Shrink and Compact Virtual Hard Disks in Hyper-V - TechDirectArchive
      • Master the process of shrinking and compacting your Hyper-V virtual hard disks to save space and enhance virtual machine efficiency.
      • Different method iusing: Hyper-V Manager, PowerShell, Resize-VHD
    • WSL2 on Windows 11 - Virtual Disk vhdx is 200GB now | Reddit
      • Release VHDX unused space:
        Open Powershell and run the following:

wsl --shutdown

diskpart

select vdisk file="path-to-your-virtual-disk\ext4.vhdx"

attach vdisk readonly

compact vdisk

detach vdisk

exit
    • How to Compact/Shrink a WSL2 Virtual Disk – Stephen Rees-Carter
      • You can use the diskpart tool to compact a VHDX. This allows you to shrink a WSL2 virtual disk file, reclaiming disk space. I went from 100GB to 15GB.
    • How to Compact a WSL2 VHDX Virtual Disk | mycodde.blogspot.com - I was struggling to compact my WSL VHDX disk, it has hardly 10 GB data but it was showing 72 GB in size.
  • Resizing
  • Starwind V2V Converter
  • VMware vCenter Converter Standalone
  • QEMU
  • VBoxManage
    • Converting disks (vboxmanage clonemedium)
      • Convert VMDK to VirtualBox VDI and compact disk - How to convert the vmdk to a VDI file and then compact it.
        ## Convert
VBoxManage clonemedium disk --format VDI [drive]:[\path_to_file\sourceFile.vmdk] [drive]:[\path-to\destinationFile.vdi]

## Compact
VBoxManage modifyhd --compact "[drive]:\[path_to_image_file]\[name_of_image_file].vdi"
    • resize VDI image size
      VBoxManage modifyhd "[drive]:\[path_to_image_file]\[name_of_image_file].vdi" --resize 81920
    • RAW Disk handling
      • vboxManage internalcommands createrawvmdk - Bing Search
        • The VBoxManage internalcommands createrawvmdk command in VirtualBox allows you to create a virtual disk that maps to a physical disk or partition. This is useful for accessing a physical disk directly from a virtual machine.
        • Example
          • To create a virtual disk that maps to an entire physical disk on a Windows host, use the following command:
            VBoxManage internalcommands createrawvmdk -filename "C:\path\to\file.vmdk" -rawdisk \\.\PhysicalDrive0
          • This command creates a .vmdk file that represents the physical disk PhysicalDrive0
        • Accessing Specific Partitions
          • You can also map specific partitions of a physical disk. For example, to map partitions 1 and 5 of /dev/sda on a Linux host:
            VBoxManage internalcommands createrawvmdk -filename /path/to/file.vmdk -rawdisk /dev/sda -partitions 1,5
          • This creates a .vmdk file that provides access to partitions 1 and 5 of /dev/sda
        • Important Considerations
          • Permissions: Ensure you have the necessary read/write permissions for the physical disk.
          • Data Safety: Incorrect use can lead to data loss. Avoid accessing the same partition from both the host and guest simultaneously.
          • Platform Differences: The device specification varies by platform (e.g., \\.\PhysicalDrive0 for Windows, /dev/sda for Linux).
        • Using VBoxManage internalcommands createrawvmdk, you can effectively utilize physical disks within your VirtualBox VMs, providing flexibility and direct access to hardware resources.
        • Learn more
      • Example Commands
        vboxManage internalcommands createrawvmdk -filename "C:\Users\Public\Documents\VirtualBox\Raw Disk Images\spinrite.vmdk" -rawdisk "\\.\PhysicalDrive2"

vboxManage internalcommands createrawvmdk -filename "C:\rawdisks\spinrite.vmdk" -rawdisk "\\.\PhysicalDrive2"
      •  Use physical harddisk in Virtual Box - Straight forward instructions - Super User - Today, I managed to boot from physical drives. This achievement required....
  • How to Read VHDX Metadata (e.g., virtual size, block size)
    • PowerShell
      • Run: Get-VHD -Path "C:\path\to\your.vhdx"
        • This returns
          • VHD type (Fixed/Dynamic)
          • Size
          • Logical sector size
          • Physical sector size
      • Note: Only works on Windows with Hyper-V features installed.
    • Use vhdxinfo from libvhdi (Linux/macOS/Windows)
      1. Install libvhdi tools:
        • On Linux: sudo apt install libvhdi-utils
        • On macOS (via brew): brew install libvhdi
        • On Windows: Download libvhdi
      2. Run: vhdxinfo yourfile.vhdx
        • This will show:
          • Header info
          • Log GUIDs
          • Virtual disk size
          • Block size
          • Parent locator (if differencing disk)
    • Parse the VHDX File Manually (Hex or Script)
      • You can parse the structure using a hex editor or script:
        1. Look for the magic header at offset 0:
          00000000  76 68 64 78 66 69 6c 65   # "vhdxfile"
        2. Read region table at 0x20000, which lists metadata regions.
        3. Use the region table to find:
          • Virtual disk size
          • Block size
          • Logical/physical sector size
          • GUIDs, versioning
      • You'd need to follow the Microsoft VHDX Specification to decode it fully.
  • TRIM'ing VHD(X) files
    • Optimize-VHD (Hyper-V) | Microsoft Learn
      • Optimizes the allocation of space used by virtual hard disk files, except for fixed virtual hard disks.
    • Optimize-Volume (Storage) | Microsoft Learn
      • Optimizes a volume.
      • The Optimize-Volume cmdlet optimizes a volume, performing defragmentation, trim, slab consolidation, and storage tier processing. If no parameter is specified, then the default operation will be performed per the drive type as follows:
        • HDD, Fixed VHD, Storage Space. -Analyze -Defrag.
        • Tiered Storage Space. -TierOptimize.
        • SSD with TRIM support. -Retrim.
        • Storage Space (Thinly provisioned), SAN Virtual Disk (Thinly provisioned), Dynamic VHD, Differencing VHD. -Analyze -SlabConsolidate -Retrim.
        • SSD without TRIM support, Removable FAT, Unknown. No operation.
    • Multiple VHD/VHDx Optimization using PowerShell Workflows
      • Optimize multiple VHD/VHDx files using PowerShell Workflows.
      • After about 5 minutes of investigation I came up with this simple PowerShell command:
        Get-VM | Where { $\_.State -eq 'Off' } | Get-VMHardDiskDrive | Optimize-VHD -Mode Full
      • It basically performs a full optimization on all VHD/VHDx files attached to all Virtual Machines that are in the Off state on the host the command is run on. This does the job quite well but has a few annoyances:
        • The optimization is performed in series.
        • Running guests won’t be optimized.
        • The command only works on VMs on the host the command is run on.

Convert and Compact an Offline VHD/VHDX Fixed Disk Image to a Dynamic Disk Image

  • TRIM is the process of the OS telling a SSD/NVMe drive to release the sector as it is no longer used, these drives do not actually zero fill the sectors to prevent uneeded writes, but in the future when the sector is read, the drive will supply back all Zeros.
  • In a Fixed Disk Image, an unused sector is denoted by being all Zeros.
  • In a Dynamic Disk Image, an empty unused sector is either all Zeros or is juts not referenced at all, in either case, all Zeros will be returned.
  • If the Disk Image files is part of an online system, the OS it is running can perform TRIM on the drives and volumes to "Zero out" unused sectors.

Instructions

VHD and VHDX are interchangeable for these commands.

  • Mount the Disk image
    Mount-VHD -Path "D:\Path\To\Fixed-Disk.vhdx" -ReadOnly

Or

Mount through the GUI (Disk Management, Right Click)
    • -ReadOnly: This should protect the volume being written to by the OS, but not this command. I am not 100% on this.
  • Zero out free space (inside the VHDX) (TRIM)
    • You need to fill the free space with zeros so the compacting process knows it’s unused.
    • Use sdelete from Sysinternals:
      sdelete64.exe -z X:
    • Replace X: with the drive letter assigned to the mounted VHD.
    • -z: This flag instructs ‘sdelete’ to write zeros over the available free space, a less intensive option than multiple passes and suitable for non-critical data.
    • This is needed because when a full RAW image of a drive is done, all bits are stored into the image, irrespective of whether that sector is holding any data.
  • Unmount the VHDX
    • Dismount-VHD -Path "D:\Path\To\Fixed-Disk.vhdx"

Or

Unmount through the GUI (Disk Management, Right Click)
  • Convert the Fixed VHDX to Dynamic.
    • Powershell
      Convert-VHD -Path "D:\Path\To\Fixed-Disk.vhd" -DestinationPath "D:\Path\To\Dynamic-Disk.vhd" -VHDType Dynamic
    • Use StarWind V2V / P2V Converter to convert the Fixed disk to a Dynamic disk
      • This process actually generates a copy of the disk image.
  • Compact the Dynamic VHDX.
    • Using Powershell
      Optimize-VHD -Path "D:\Path\To\Dynamic-Disk.vhdx" -Mode Full
    • Using Diskpart
      diskpart
select vdisk file="D:\Path\To\Dynamic-Disk.vhdx"
attach vdisk readonly
compact vdisk
detach vdisk
exit
      • readonly: This should protect the volume being written to by the OS, but not this command. I am not 100% on this.
  • Done

Running Trim in a live OS

  • Virtual Drive TRIM - VergeOS Docs - How to regain space on a virtual SSD
    • After importing a virtual machine from another hypervisor, sometimes the free space available inside the virtual machine does not match the free space reported to the VergeOS platform.
    • This discrepancy is often due to the virtual disk being thick-provisioned from the VM source, making VergeOS unaware of the unused disk space.
    • To resolve this, a TRIM/UNMAP operation needs to be performed on the virtual disk from within the virtual machine.
    • Trimming a Windows Drive
      Optimize-Volume -DriveLetter YourDriveLetter -ReTrim -Verbose

Optimize-Volume -DriveLetter E -ReTrim -Verbose
    • Trimming a Linux Drive
      ## Check TRIM Timer/Schedule Status:
sudo systemctl status fstrim.timer

## Check TRIM Service Status:
sudo systemctl status fstrim

If TRIM is enabled, an operation will run at the next scheduled time. If TRIM is not enabled, you can

## Run a manual TRIM using:
sudo fstrim -av

## Info
It is recommended to enable automatic TRIM to ensure that data usage is reflected accurately between VergeOS and the guest OS.

## To enable automatic TRIM, run:
sudo systemctl enable fstrim.timer

Repairing Disk Images

Partition Types

Makes your USB drive appear as a Hard drive and not removable Media

Is htis best ehre or antoher article

TL;DR = Might not be possible any more, and if it is, it is not worth the hassle.

  • Flip the Removable Media bit (RMB) on the drive itself
    • The Lexar BootIt utility was designed to "flip the removable media bit" on certain USB flash drives, making them appear as fixed (hard) disks to Windows. This was a niche utility and often highly specific to particular flash drive controllers. It's largely outdated and generally not recommended due to potential instability and the possibility of bricking your USB drive.
      The "removable media bit" is often a hardware-level setting within the USB drive's controller firmware. So, if a utility like Lexar BootIt doesn't work for your specific drive, there's often no generic software alternative that can reliably change this "bit."
    • Flip Your Bit USB Utility To Make Local Drive | getusb.info
      • BootIt is a Lexar based utility to flip the Removable Media Bit setting of a USB drive. What this means, is you can take a Lexar drive (and many other brands) and make it appear as a Local Drive on your PC rather than Removable Storage.
    • Removable USB Flash Drive as Local HDD in Windows | Windows OS Hub
      • In this article we’ll show you how to make a USB flash drive or an SD card to be identified in the Windows as a common local hard disk.
      • Probably, you may ask why it’s necessary? The matter is that by default Windows identifies all the USB flash drives and SD cards as removable drives that can’t be split into several partitions with the built-in Windows tools.
      • And even if you partition the USB flash drive into two or more volumes using third-party utilities (say, in Linux), only the first partition will be available in Windows. Windows supports multiple partitions only for hard disk drives identified as local (i.e. non-removable).
      • Windows recognizes USB flash drives as removable devices due to the presence of a special descriptor bit RMB (removable media bit) on each of the devices. If the system determines that RMB=1 when polling the connected device using StorageDeviceProperty function, it concludes that this device is a removable drive. Thus, in order to convert the USB-flash to the hard disk it is enough to modify this descriptor.
      • Software covered
        • Lexar BootIt
        • Hitachi filter driver
    • How to make a disk drive "removable" - Windows 10 Forums
    • Make USB Removable -> Fixed Disk / Applications & Desktop Environments / Arch Linux Forums - TL;DR : How do you "flip the bit" of a USB Drive to make it be seen by Windows as a "Removable" or "Fixed Disk" under Arch, or really any Linux distro?  I can't seem to find any Unix instructions, only Windows apps.
    • Removable USB Flash Drive as Local HDD in Windows | Windows OS Hub - In this article we’ll show you how to make a USB flash drive or an SD card to be identified in the Windows as a common local hard disk.
  • Windows Registry
    • The mode cannot be changed in the Windows registry.





Published in Virtual Machines
Read more...
Friday, 18 July 2025 13:11

My DiskGenius Notes

My DiskGenius Notes

General

  • Docs
  • Misc
    • When you mount a drive in Windows either using the GUI or diskpart, the image will be mounted as a physical drive.
    • Windows and OSFMouint will mount an image whether is is a normal HDD style or a "Super Floppy" (FDD) style image.
    • Windows will not fall back to a logical volume emulation if a VHD (Virtual Hard Disk) image file is corrupted—even slightly.
    • can 7zip open VHD files?
    • The partition table is not inherently protected—it's just stored in a specific location on the USB drive. While it can’t be easily changed by average users without intent or privilege, it can be accessed, overwritten, or corrupted by software that has sufficient access.
    • All VHDs (and other image formats) created with DiskGenius, are fixed-size containers from the outset, made via sector-level cloning.
    • The `Convert Boot Mode` options have moved here:
      • Disk --> Convert Boot Mode -->
        • Convert To USB-ZIP Bootable Mode
        • Convert To USB-FDD Bootable Mode
        • Convert To HDD mode
    • If a Volume's `File System` type is display in Red
      • This means it is set as the drive's active partition.
      • It should also be accompanied by an `Attribute` of A.
    • When you format a USB disk, windows formats it in "Super "loppy format. These can can be booted by a legacy BIOS, but these are not a bootable hard drive.
    • Making a USB drive "bootable" adds in an MBR which includes a partition table.
    • Windows when loading a USB checks for both a partition table and then if this is not present searches for a partition (Super Floppy) allowing for both types of USB to load in Windows.
  • License
    • Q: The lifetime license, is this forever or is it linked to a major release of your software? Once licensed will the software work forever or is it time limited?
    • A: After the license is activated, it is bound to the computer and hardware and is permanently activated.
  • View SSD-nVME transfer mode
    • Disk --> View S.M.A.R.T. Information --> Transfer Mode: PCIe 3.0 x4 | PCIe 4.0 x4

Make the DiskGenius Bootable WinPE USB

DiskGenius supports to making a bootable USB version based on Windows PE so that you can recover lost data, manage disk or backup data when system cannot boot.

  • When you create your USB drive I think the build process uses your PC for the drivers and the WinPE files, so the resulting data size on the USB drive will change depending on your system (Win10 = 1GB, Win11 = 2GB)
  • I don't know if the DiskGenius USB drives are tied to the PC they were created on.

Format the USB drive

Although DiskGenius can use a USB drive in either the "Supper Floppy" (FDD) or Hard drive mode (HDD) it is easier to work with a HDD version where it has an MBR and Partition table like a traditional hard drive.

When you format a USB drive in Windows the "Super Floppy" format is used by default. I am not sure what happens when you use Windows to format a USB drive taht has a partition table, perhaps ot leaves it alone.

  • Format your USB in Rufus in MBR format

    • Boot selection: Non bootable
    • Partition scheme: MBR
    • Target system: BIOS or UEFI
    • Volume label: DISKGENIUS (or whatever you want)
    • File system: FAT32
    • Cluster size: Default (this might vary depending on the size of the USB drive)
  • Set the partition active
    • This is not required because DiskGenius does this when it makes the USB a WinPE drive.

Write the WinPE USB

This is non-destructive process, so if there were files on the USB before, they should still be there after the creation of the WinPE environment.

  • Create WinPE Bootable USB Drive - DiskGenius
    • Open DiskGenius
    • Tools --> Create WinPE Bootable USB Drive of DiskGenius.
    • Insert the USB you just formatted above if not still pugged in.
    • Make sure the right USB drive is selected
      • It is easier just to have one USB drive connected to prevent mistakes.
    • Click OK button from the pop-up window.
      • If you get a message about the drive is mounted, just let DiskGenius unmount the drive
      • Wait for a couple of seconds and the bootable disk will be created.
    • Click OK button after the bootable disk is created successfully.
  • NB: The WinPE files and folders are hidden

Booting DiskGenius from Ventoy

  • To boot DiskGenius from Ventoy, we need to generate the DiskGenius WinPE Bootable USB Drive and image it.
  • Ventoy allows the use of several different image formats, all with their own strengths.

VHD/VHDX (Recommended)

Method 1 - Disk Image of the USB (Recommended)

  • I would recommend getting a 2GB USB drive to keep the image size down and reduce the number of steps required.
    • (Win10 WinPE = 550mb)
    • (Win11 WinPe = 1GB+)
  • The size difference between the images created by these formats is minimal.
  • Aquire the Image
    • Connect the DiskGenius USB drive
    • Image with Rufus to get an Fixed Disk Image (VHDX) of the USB drive
      • Create a VHDX image, save it to your desktop and call it: FIXEDSIZE-DiskGenius v6.0.1.1645.vhdx
    • Disconnect the DiskGenius USB drive (optional)
  • Prepare the Image
    • Nothing to do
  • Configure Ventoy
    • Connect the Ventoy USB drive
    • Copy DiskGenius v6.0.1.1645.vhdx to your ventoy images partition.
    • Install the Ventoy Windows VHD Boot Plugin
      • Plugin.WinVhdBoot . Ventoy
        • Ventoy uses this plugin to boot VHD(x) files with Windows 7+ in it.
        • Both Legacy BIOS and UEFI are supported. Both fixed and dynamic VHD(x) are supported.
        • In UEFI mode, only 64 bit Windows is supported, 32 bit is NOT supported.
  • Done
    • Boot from your Ventoy USB and check it loads.

Method 2 -  Manually Create VHDX

  • Create the VHDX (there are probably other ways)
    • Open up `Disk Management`
      • Run: diskmgmt.msc
    • Action --> Create VHD
      • Use these settings:
        • Location: C:\Users\quantunwarp\Desktop\DiskGenius v6.0.1.1645.vhdx
        • Virtual hard disk size: 2GB
        • Virtual hard disk format: VHDX
        • Virtual hard disk type: Dynamically expanding (Recommended)
    • Once created, the drive is automatically mounted but needs to be initialised like any new disk.
      • In `Disk Mangement` Right click on the new drive and select Initialise Disk
      • Use the MBR partition style
    • Create a FAT32 partition
      • Right click on the drive and select New Simple Volume and follow the wizard.
      • Use these settings:
        • File System: FAT32
        • Allocation unit size: Default
        • Volume Label: Disk Genius
        • Perform a quick format.
    • Set the partition active
      • Use DiskGenius to set the partition active
  • Prepare the Image
    • Mount the VHDX disk image.
    • Connect the DiskGenius USB drive.
    • Show hidden files
    • Copy all files on the USB drive to the VHDX volume.
    • Hide all files again
    • Unmount/Detach the Disk Image.
  • Configure Ventoy
    • Connect the Ventoy USB drive
    • Copy DiskGenius v6.0.1.1645.vhdx to your ventoy images partition.
    • Install the Ventoy Windows VHD Boot Plugin
      • Plugin.WinVhdBoot . Ventoy
        • Ventoy uses this plugin to boot VHD(x) files with Windows 7+ in it.
        • Both Legacy BIOS and UEFI are supported. Both fixed and dynamic VHD(x) are supported.
        • In UEFI mode, only 64 bit Windows is supported, 32 bit is NOT supported.
  • Done
    • Boot from your Ventoy USB and check it loads.

Reduce VHD/VHDX Disk Image Size (optional)

With the disk images being so small, this step is not really needed. I have kept it here for reference even thought I did not have much success with it.

  • Mount your drive image
    1. Windows Native (GUI)
      1. Right click on the drive image and select mount.
      2. or through `Disk Management`: Action --> Attach VHD
    2. Windows Native (diskpart)
      1. Select the disk via its path: select vdisk file="<PathToYourDesktop>\DiskGenius v6.0.1.1645.vhdx"
    3. OSFMount
  • Clear free space
    • Run sdelete to zero out unused space on the image's volume
    • This might not be required if Starwind only sees files and not RAW data.
  • Convert the image with StarWind V2V / P2V Converter
    • Select the location of the image to convert: P2V
    • Select physical data to convert: Physical Disk
    • Select physical disk to convert: Virtual Disk
    • Select the location of the destination image: Local file
    • Select the destination image format: VHD/VHDX
    • Select option for VHD/VHDX image format: VHDX growable image
      • Ignore `Activate windows Repair Mode`
    • Set destination filename: <PathToYourDesktop>\DiskGenius v6.0.1.1645.vhdx
    • Click `Convert`
  • Compact the Dynamic disk image to reduce space
    • This might be required to recover the free space.
  • Unmount your drive image
    • Window Native (GUI)
      • You can unmount by right clicking on the drive and selecting Eject.
      • or through `Disk Management`: Right click on the drive you want to unmount and select, Detach VHD.
    • Windows Native (diskpart)
      • run the command: detach vdisk

WIM

  • This only works when using EFI/UEFI boot  environments.
  • If you try and boot the WIM when using MBR/CSM/Legacy, it will start to load and then a black screen will overlay the Ventoy loader and it will crash.
  • Aquire the Image
    • Connect the DiskGenius USB drive.
    • Show hidden files.
    • Copy the following file to your desktop: ...\DiskGenius - Boot\boot.wim
    • Disconnect the DiskGenius USB drive (optional)
  • Prepare the Image
    • Rename boot.wim to something human readable like DiskGenius v6.0.1.1645.wim
  • Configure Ventoy
    • Connect the Ventoy USB drive
    • Copy DiskGenius v6.0.1.1645.vhdx to your ventoy images partition.
    • Install the Ventoy Wimboot Plugin
      • Plugin.wimboot . Ventoy
        • Use this plugin to boot WIM files (Legacy BIOS + UEFI)
        • Use Windows native bootloader (Legacy + UEFI): etfsboot.com + bootx64.efi directly extracted from Windows ISO file
      • For Reference (not used)
        • WIMBOOT Mode | Ventoy
          • WIMBOOT mode is an alternative for booting official Windows ISO.
          • Do I need to install the plugin? Is WIM support now native?
  • Done
    • Boot from your Ventoy USB and check it loads.

ISO

  • This is a very trick and time consuming option and is not really needed
  • Try and find and ISO already done, and then use this.

method 1 get a windows disk and swap out the contents, keeping the boot sector

  • Aquire the Image
    • Connect the DiskGenius USB drive
    • ..............
  • Prepare the Image
    • ...........
  • Configure Ventoy
    • Connect the Ventoy USB drive
    • Copy DiskGenius v6.0.1.1645.iso to your ventoy images partition.
  • Done
    • Boot from your Ventoy USB and check it loads.

Troubleshooting

How to check if your USB is configured as "Super Floppy" or a traditional Hard drive (HDD)

There are a couple of methods outlined below.

  • diskpart
    • Run the following commands (swap # for the number assigned to your USB disk):
      diskpart
list disk
select disk #
detail disk
    • This should give an output as follows:
      Microsoft DiskPart version 10.0.26100.1150

Copyright (C) Microsoft Corporation.
On computer: WIN11PC

DISKPART> list disk

  Disk ###  Status         Size     Free     Dyn  Gpt
  --------  -------------  -------  -------  ---  ---
  Disk 0    Online         1863 GB  4096 KB        *
  Disk 1    Online         7651 MB      0 B

DISKPART> select disk 1

Disk 1 is now the selected disk.

DISKPART> detail disk

General USB Flash Disk USB Device
Disk ID: 6F20736B
Type   : USB
Status : Online
Path   : 0
Target : 0
LUN ID : 0
Location Path : UNAVAILABLE
Current Read-only State : No
Read-only  : No
Boot Disk  : No
Pagefile Disk  : No
Hibernation File Disk  : No
Crashdump Disk  : No
Clustered Disk  : No

  Volume ###  Ltr  Label        Fs     Type        Size     Status     Info
  ----------  ---  -----------  -----  ----------  -------  ---------  --------
  Volume 5     E   PICTURES     FAT32  Removable   7651 MB  Healthy

DISKPART> list partition

  Partition ###  Type              Size     Offset
  -------------  ----------------  -------  -------
* Partition 1    Primary             14 GB      0 B

DISKPART> select partition 1

There is no partition selected.

DISKPART>
    • As you can see, Disk 1 (the USB):
      • It is not a GPT based disk.
      • Has no free space, meaning that all the space has been assigned to partitions.
      • It is not a "Boot Disk".
      • Has only 1 Volume/Partition, which is not bootable.
      • When you try and select the partition, diskpart returns the error, There is no partition selected., indicating it has an error accessing the partition table, which do not exist on "Super Floppy" USB drives.
    • This is a "Super Floppy" USB drive, or the partition table is corrupted.
  • DiskGenius
    • This images shows you a 16GB "Super Floppy" USB drive

      1. Basic/RAW = This means there is no MBR or Partition Table.
      2. FAT32 (FDD) = This is a FAT32 partition, but has not been defined in a partition table.
      3. MBR Signature: 00000000 = No MBR is defined.
      4. Partition Table Style: NONE = No partition table.
      5. Volume/Partition is not marked as active.
      6. In the drive tree, there is a floppy icon instead of a HDD.
  • OSFMount
    • Does not show partitions in "Step 2 of 4" as shown below, and "Mount partitions as virtual disks" is greyed out.

      • This indicates a "Super Floppy" or corrupt disk image.
      • There is no valid partition table for OSFMount to read.
      • If the Volume gets mounted in windows then the Image is not corrupt and the drive image is that of a "Super Floppy".
    • I have an image that when i mount as a physical disk shows not partitions in OSFMount but windows mounts a volume form this drive?
      • This behavior can be confusing, but it usually comes down to how Windows interprets disk images versus how OSFMount handles physical vs logical mounting.
      • Your Situation:
        • You mount an image in OSFMount as a physical disk.
        • OSFMount shows no partitions in its interface.
        • Windows still assigns a drive letter and allows you to access a volume from that disk.
      • Likely Explanation:
        • Even though OSFMount is mounting the image as a physical drive, it may not parse or display the partitions correctly, especially if:
          • The partition table is non-standard or corrupt.
          • The image is just a raw partition, not a full disk with MBR/GPT.
          • OSFMount has trouble recognizing certain filesystems or partition layouts.
          • The image has a "superfloppy" format — a single partition image without an MBR (common in some forensic images or disk clones).
        • Yet Windows is often more lenient:
          • It scans all volumes and can mount a recognizable file system (e.g., NTFS or FAT32), even if the partition table is missing or broken.
          • Windows may treat the image like a full partition, even though OSFMount expects a structured physical disk.
      • What You Can Do:
        • Try mounting the image as a logical drive instead of physical:
          • In OSFMount, choose: Mount as drive letter (logical drive)
          • Select the image file and choose offset 0 (or auto-detect).
          • This usually works well if the image is a raw partition.
        • Use disk utilities to inspect the structure:
          • Tools like FTK Imager, WinHex, or HxD can help determine if the image has an MBR, GPT, or just a raw file system.
          • You can also check in Disk Management (diskmgmt.msc) how Windows sees the mounted image (does it show a healthy volume or an unallocated disk?).
        • Check the image format:
          • If it’s from forensic software (like EnCase or dd), it might be a raw partition or use non-standard formatting.
      • Quick Test
        • If you suspect it's a partition image (not a full disk), here’s a trick:
          • Open it in OSFMount.
          • Mount it as a logical drive with Offset = 0 and file system type = "Auto-detect".
          • If it mounts and shows files, it’s just a partition, not a full disk with an MBR.

When you Mount a DiskGenius USB Disk Image as a hard drive in Windows you get this error

  • TL;DR this error is caused by the source USB formatted as a "Super Floppy"
  • Starwind P2V does not support "Super Floppy" for live copying as it expects a partition table.
  • A USB drive can be formatted as a traditional hard drive (HDD) or in a "Super Floppy" format akin to a traditional floppy disk (FDD).
  • "Super Floppy" does not have a MBR or a Partition Table which is what Starwind is looking for when copying from the mounted Disk image.
  • Starwind wiil not present/see Removable Media disks or their Volumes, only hard disks. This is intentianal by the software developers.

Scenario

  • You used a large USB drive for your DiskGenius WinPE and as a consequence the image is very large even though most of the space is empty.
  • You mounted the drive image using either Windows Native or OSFMount. (in this example we has used OSFMount)
  • The drive has successfully mounted
  • You open Starwind V2V to convert your large USB Fixed size disk image to a growable VHDX image which will create a much smaller image file
  • After going through the wizard, you click on convert and almost immediately you get the following error.

Error



Log File

7/21 16:24:49.493 2b68 Facility ???INFO: CV2V_ConverterApp::InitInstance: SetDllDirectory: C:\Program Files\StarWind V2V Converter\lib
7/21 16:24:49.493 2b68 Facility ???INFO: CV2V_ConverterApp::InitInstance: File Version: 9.0.1.757
7/21 16:24:49.508 2b68 Facility ???INFO: CV2V_ConverterApp::InitInstance: Load language IDR_XML_ENGLISH
7/21 16:24:49.508 2b68 Facility ???INFO: CV2V_ConverterApp::InitInstance: Set current language English
7/21 16:24:49.508 2b68 Facility ???INFO: CPS_V2V_Converter::CPS_V2V_Converter: Version MajorVersion 10, MinorVersion 0, BuildNumber 19045
7/21 16:24:49.508 2b68 Facility ???INFO: WrapperHyperV::WrapperHyperV: LoadLibrary C:\Windows\system32\wbem\wmiutils.dll - 94cb0000
7/21 16:24:49.508 2b68 Facility ???INFO: WrapperHyperV::WrapperHyperV: LoadLibrary C:\Windows\system32\wbem\wmiutils.dll - 94cb0000
7/21 16:24:53.723 2b68 Facility ???INFO: ICPPage::OnWizardNext: SetActivePage - eSynchronization
7/21 16:24:57.926 2b68 Facility ???INFO: ICPPage::OnWizardNext: SetActivePage - eAzureConnectionTo
7/21 16:25:06.162 2b68 Facility ???INFO: ICPPage::OnWizardNext: SetActivePage - eLocationTo
7/21 16:25:09.053 2b68 Facility ???INFO: ICPPage::OnWizardNext: SetActivePage - eFormat
7/21 16:25:12.381 2b68 Facility ???INFO: ICPPage::OnWizardNext: SetActivePage - eOptionsHyperV
7/21 16:25:17.914 2b68 Facility ???INFO: ICPPage::OnWizardNext: SetActivePage - eConverting
7/21 16:25:43.043 2b68 Facility ???INFO: CPPOutputFile::onNext: Out path: C:\Users\quantumwarp\Desktop\DiskGenius-Dynamic.vhdx, Out format 11
7/21 16:25:43.043 2b68 Facility ???INFO: ICPPage::OnWizardNext: SetActivePage - eHYPERVConnectionTo
7/21 16:25:43.043 1788 Facility ???INFO: CPPConverting::Convert: InConvertType: 2, OutConvertType: 4
7/21 16:25:43.043 1788 Facility ???INFO: CPPConverting::ConvertDisks: pathInput: 1, pathOutput: C:\Users\quantumwarp\Desktop\DiskGenius-Dynamic.vhdx
7/21 16:25:43.043 1788 Facility ???INFO: P2V::CreateInputImage: path 1
7/21 16:25:43.043 1788 Facility ???INFO: P2V::CreateInputImage: Size 1 - 15518924800, BytesPerSector - 512
7/21 16:25:48.090 1788 Facility ???INFO: CPPConverting::ConvertDisks: CreateInputImage: 0
7/21 16:25:48.090 1788 Facility ???INFO: CPPConverting::ConvertDisks: CreateOutputImage: 0
7/21 16:25:48.090 1788 Facility ???ERROR: CPPConverting::ConvertImage: Read 3
7/21 16:32:00.054 1788 Facility ???ERROR: CPPConverting::ConvertDisks: ConvertImage - 2
7/21 16:32:00.054 1788 Facility ???ERROR: CPPConverting::Convert: FAILED

Log Explained

Here's what the log tells us:

  • StarWind V2V Converter Version: 9.0.1.757 - This is a relatively recent version, so it's unlikely to be a bug in an old release.
  • Conversion Type:
    • InConvertType: 2 - This indicates a Physical Disk source.
    • OutConvertType: 4 - This indicates a Hyper-V (VHDX) destination.
    • This confirms that StarWind V2V Converter sees the OSFMounted IMG as a physical disk, which is good.
  • Source Disk Identification: pathInput: 1 and Size 1 - 15518924800, BytesPerSector - 512
    • pathInput: 1 likely refers to the "Disk 1" as seen by Windows Disk Management. This corresponds to the virtual disk presented by OSFMount.
    • The size 15,518,924,800 bytes (approx 14.45 GB) and BytesPerSector - 512 are correctly identified by the converter from the virtual disk.
  • Failure Point:
    • CPPConverting::ConvertDisks: CreateInputImage: 0 - This line means StarWind successfully initialized the connection to the source disk.
    • CPPConverting::ConvertDisks: CreateOutputImage: 0 - This line means StarWind successfully initialized the connection to the destination VHDX file.
    • CPPConverting::ConvertImage: Read 3 - This is the critical error. It happens immediately after the input and output images are created, right at the point where StarWind tries to read the actual data from the source disk. This confirms a low-level read error from the OSFMounted virtual disk.
    • The subsequent errors (ConvertImage - 2, FAILED) are a direct consequence of this initial read failure.
  • Conclusion from the log
    • The log strongly indicates that the issue is not with StarWind V2V Converter itself, nor with the destination drive or VHDX creation. The problem lies squarely with StarWind's ability to read data from the virtual disk presented by OSFMount, which is derived from your disk image file created from your DiskGenius USB drive.
    • Rufus can write raw ISO or DD images that may not have a typical partition table or disk signature that StarWind expects. This can cause problems when it tries to interpret sectors and fails.
  • Additional
    • This following error (not in the example above) shows an issue with the drive (VHD or physical) not being able to read sectors. If it is a physical drive then this indicates the drive is failing.
      10/21 12:55:57.929 2764 Facility ???WARNING: P2V::getBuffer: ReadFile - 23. Data error (cyclic redundancy check).
10/21 12:55:57.929 2764 Facility ???ERROR: CPPConverting::ConvertImage: Read 3
10/21 13:03:16.650 2764 Facility ???ERROR: CPPConverting::Convert: FAILED

Cause

After in-depth research I can clarify the error is not cause by:

  • Rufus or DiskImager: these apps just create a binary image of the disk and change nothing. Any errors or issues of the drive are blindly transferred to the disk image.
  • Windows 10 or Windows 11: Apart from the size of the boot.wim there is no difference (Win10 = 550mb)(Win11 = 1GB).
  • Windows Native and OSFormat disk image mounting: These were mounting the disk image correctly and giving a 1:1 representation of the imaged USB drive.
  • The disk image being mounted as "Read-Only": This does not interfer with the conversion as it is used as a source only.
  • The size/capacity of the USB drive: None of the software has any size limits, certainly none that have been reached.
  • Cluster Size / Allocation Unit Size: I tried both 4096 and 8192 and those made no difference. 8192 seems to be the default allocation size for 16GB USB drives.
  • Trying different locations for the source and destination files made no difference.
  • VHD, VHDX and IMG disk image formats all worked as expected.
  • I got no Windows Defender errors, so in this case it was not the AV causing issues.
  • Encryption on the drive can cause issues but these drive had none so can be ruled out.

What I have tried

  • Zero filling the USB before reformatting = When I formatted with Windows, it just created a "Super Floppy" USB drive because this is how Windows formats them.
  • I check the USB drive for errors by doing a full surface scan, it found no errors.
  • I checked the FAT32 file system with chkdsk which found no errors.

Solutions

  • Always use Dynamic/Growable disk image files where possible to keep space used down.
  • Always use MBR/HDD style formatting on your USB drives where possible.
  • Use a HDD/MBR Style USB drive to begin with or make one:
    • Using Rufus, convert the USB drive into bootable USB, with a single FAT32 partition (HDD format), and of course the partiontion will be marked as `Active`.
    • Then use DiskGenius to make it a WinPE.
    • This way ensures the USB drive and any images created from it will work in Starwind P2V as there is a partition table present.
    • This USB drive will is NOT a "Super Floppy".
  • Use the original disk image as is.
    • You can keep the image size down by using a smaller USB drive (Win10 = 1GB, Win11 = 2GB).
  • Use DiskGenius Pro to make a direct VHD/VHDX image from the USB drive
    • This is the same as using Rufus to create the disk image.
    • All disk images created by DiskGenius are of the Fixed size type.
  • Build your own VDH/VDHX image
    • Manually create a VHD/VHDX image on your PC (MBR, Single 2GB FAT32 partition)
    • Mount the VHD/VHDX drive image
    • Set the partition as `Active`.
    • Then manually copy all of the files from the USB drive into the new partition ion the drive image.

WinPE - Low Resolution

  • TL;DR = UEFI GOP (Graphics Output Protocol) sets the screen resolution before WinPE when using EFI on my lenovo (resolution seems to be set at 800x600 and cannot be changed)
  • Solution = Boot in legacy mode and then change the resolution in DiskGenius if needed: View --> Set screen resolution (Options: 1920x1080, 1024x768). This was on my Lenovo laptop.
  • Notes
    • Using a different boot loader like Grub which can be used to see what resolutions the GOP provides.
    • My Lenovo on EFI returns a resolution of 800x600 but when I use CSM/Legacy I get 1024x768 and 1920x1080 which I can then swap between with the DiskGenius menu in the WinPE environment.
    • For most users on modern UEFI systems — the hard limit is 1024x768.
    • Some people say showing the boot logo helps increase screen resolution (not tested).
    • DiskGenius resolution in the BCD is 1024x768
    • Resolutions available will vary from PC to PC, Laptop to Laptop, and can also vary depending on the the boot method (Legacy BIOS / UEFI) used.

In DiskGenius

In the WinPE environment created by DiskGenius, you can change the screen resolution according to the following, if your hardware supports it.

Notes

When trying to change the resolution of my screen when using DiskGenius on my Lenonvo laptop.

  • Various Options summary
    • Legacy Boot = allows me to change res in WinPE
    • setres = no
    • qres = 2005, didnt work
    • powershell = no powershell to use
    • unattended.xml = doesn't work
      • Modify the WinPE Image Before Boot (Recommended):
        • This is the most reliable method for setting the desired resolution. You do this by customizing the boot.wim file that makes up your WinPE environment.
        • You can create an unattend.xml file with display settings and place it in the root of your WinPE ISO or USB. This file will be processed during the WinPE startup phase.
        • Here's an example of the unattend.xml snippet for setting resolution:
          <?xml version="1.0" encoding="utf-8"?>
<unattend xmlns="urn:schemas-microsoft-com:unattend">
    <settings pass="windowsPE">
        <component name="Microsoft-Windows-Setup" processorArchitecture="amd64" publicKeyToken="31bf3856ad364e35" language="neutral" versionScope="nonSxS" xmlns:wcm="http://schemas.microsoft.com/WMIConfig/2002/State" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
            <Display>
                <ColorDepth>32</ColorDepth>
                <HorizontalResolution>1920</HorizontalResolution>
                <RefreshRate>60</RefreshRate>
                <VerticalResolution>1080</VerticalResolution>
            </Display>
        </component>
    </settings>
</unattend>
    • bcdedit / graphicsresolution
      • I made sure I was working on the WinPE drive: X: eg:
        X:\bcdedit /store D:\boot\BCD /set {globalsettings} graphicsresolution 1280x1024
      • Works
        bcdedit /store "d:\boot\BCD" /set {bootmgr} graphicsresolution "800x600"
bcdedit /store "d:\boot\BCD" /set {bootmgr} graphicsresolution "1024x768"
      • Not Working
        bcdedit /store "d:\boot\BCD" /set {bootmgr} graphicsresolution "1280x768"
bcdedit /store "d:\boot\BCD" /set {bootmgr} graphicsresolution "1280x1024"
      • Reason
        • Most UEFI firmware initializes the screen at 1024x768 or lower.
        • graphicsresolution is backed by the boot graphics adapter using VESA BIOS Extensions (VBE) or UEFI GOP (Graphics Output Protocol).
        • Changing that during early boot (before Windows loads its display drivers) is not officially supported past that limit.
        • For most users on modern UEFI systems — the hard limit is 1024x768.
  • Standards
    • GOP - OSDev Wiki
      • This is the new standard for UEFI that superseded VESA (BIOS) and UGA (EFI 1.0).
      • It has basically the same functions as VESA, you can query the modes, set the modes.
      • It also provides an efficient BitBlitter function, which you can't use from your OS unfortunately.
      • GOP is an EFI Boot Time Service, meaning you can't access it after you call ExitBootServices(). However, the framebuffer provided by GOP persists, so you can continue to use it for graphics output in your OS.
  • BCD
  • Other Testing
    • WinPE Screen Resolution and DPI scaling on UEFI firmware | mistyprojects.co.uk
      • This article is based on observations on screen resolution and DPI scaling in WinPE.
      • Screen resolution can be changed from a running WinPE booted on BIOS firmware.
      • Changing the screen resolution on UEFI firmware is not so simple. Settings in unnatend.xml appear to be ignored and the screen resolution is fixed. Based on available information screen resolution appears to be set based on Graphics Output Protocal (GOP) mode. Once WinPE is booted, the resolution cannot be changed.
      • Setting the resolution in the BCD
        bcdedit.exe /set {globalsettings} graphicsresolution 800x600
bcdedit.exe /set {globalsettings} graphicsresolution 1024x600
bcdedit.exe /set {globalsettings} graphicsresolution 1024x768
      • Attempting to use an unsupported resolution (unsupported by bcdedit.exe - not the hardware) resulted in the following output:
        C:\windows\system32>bcdedit.exe /set {globalsettings} graphicsresolution 1920x1080
The integer data is not valid as specified.
Run "bcdedit /?" for command line assistance.
The parameter is incorrect.
      • The highestmode option is also supported in bcdedit.exe. This option will enable boot applications to use the highest graphical mode detected by the firmware
        bcdedit.exe /set {globalsettings} highestmode on
      • To find supported resolutions, use the graphicsmode --info command on the GRUB4UEFI commandline.
  • unattend.xml
  • Ventoy
    • [issue]: Low resolution gfx mode booting various ISOs · Issue #3019 · ventoy/Ventoy · GitHub
      • Could be an issue with Secure Boot and Lenovos
      • Check what resolutions are avaiable in UEFI and Legacy: F5 --> Resolution Configuration
      • Rebuild your venoty USB from scratch can help get rid of this resolution issue.
    • Can i set the GOP resolution with Ventoy?
      • Yes, Ventoy offers options to influence the display resolution, including in UEFI mode, but it's important to understand the nuances, especially regarding GOP.
      • Ventoy's approach to resolution:
        1. Ventoy Menu Resolution: Ventoy itself, at its boot menu, tries to set a resolution. You can typically access this by pressing F5 (Tools) --> Resolution Configuration from the Ventoy main menu. This allows you to choose from resolutions detected by your system's firmware.
          • In UEFI mode, these options are often limited to the resolutions exposed by the GOP (Graphics Output Protocol) of your motherboard/graphics card. Common options might include 1024x768, 1280x1024, 1920x1080, and sometimes others, but it depends on your hardware's firmware.
          • While Ventoy can request a specific resolution from the firmware, the ultimate support depends on what your system's GOP actually offers.
        2. ISO Boot Resolution (Post-Ventoy): This is where it gets tricky, especially with WinPE.
          • Ventoy's role ends once it hands off control to the ISO: So, while Ventoy might display its menu at a certain resolution, the operating system (like WinPE or a Linux distro) inside the ISO will then take over display control.
          • WinPE and UEFI GOP: As discussed before, WinPE in UEFI mode often defaults to a generic resolution (e.g., 800x600) because it relies on the basic GOP. It doesn't load full display drivers by default.
          • Ventoy's "Secure Boot Support" and Resolution Issues: There have been reports (as seen in search results) that enabling "Secure Boot Support" in Ventoy, especially with certain Lenovo UEFI firmware, can lead to WinPE ISOs being stuck at a low 800x600 resolution in UEFI mode. Some users found success by disabling secure boot support in Ventoy's installation options, even if Secure Boot is still enabled in the BIOS itself. This suggests a potential conflict or a more restrictive GOP mode being enforced when Ventoy's secure boot components are active.
      • How to try and set resolution with Ventoy in UEFI:
        1. During Ventoy Installation/Update:
          • When you run Ventoy2Disk.exe (on Windows) to install or update Ventoy on your USB drive, go to Option and consider unchecking "Secure Boot Support." This has reportedly helped some users with low resolution issues for WinPE in UEFI.
          • Backup your ISOs first, as clearing or reinstalling Ventoy will wipe the USB drive.
        2. From the Ventoy Boot Menu (before booting the ISO):
          • Boot your Ventoy USB drive.
          • When the Ventoy main menu appears, press F5 (Tools).
          • Select Resolution Configuration.
          • Choose the desired resolution from the list of available modes. Ventoy will attempt to set this resolution for its menu.
          • Then, proceed to boot your DiskGenius WinPE ISO.
      • Important points to remember:
        • This won't guarantee WinPE will stay at that resolution. Even if Ventoy's menu appears in a higher resolution, WinPE might revert to a lower one once it boots if it doesn't have the necessary display drivers loaded internally.
        • Integrating drivers into WinPE is still the most robust solution for UEFI. While Ventoy can set the initial GOP mode, for WinPE to utilize higher resolutions and display options, it truly needs the proper display drivers embedded within its boot.wim file.
        • Check Ventoy's Official Documentation: Always refer to the official Ventoy documentation (ventoy.net) for the most up-to-date information and advanced configuration options (e.g., ventoy.json for persistent settings).
  • Software to change Resolution
  • Misc
    • Problem with resolution of Windows Boot Manager - Microsoft Q&A - Is there anyone know that how to take the default resolution back to Windows Boot Manager?
    • Low Resolution Boot Screen Issue & Suggested Fix | Windows 11 Forum
      • This is simply an aesthetic bother but I can't stand when my 4K PC monitor boot screen looks like it's 480p
      • Someone understood and offered this fix
      • Yes you can:
        bcdedit /deletevalue "{globalsettings}" highestmode

reboot
      • That picture you posted has zero to do with Windows and everything to do with the BIOS/UEFI loading screen.
      • If it was as simple as running the above command from within Windows to edit the BIOS loading screen (or any bios settings for that matter, then we would all be in a world of trouble and at the mercy of any and all nasties that managed infect Windows.
  • When i boot of diskgenius WinPE bootable USB, the screen resolution is too low. The option to change screen resolution is missing
    • When booting a DiskGenius WinPE bootable USB, experiencing low screen resolution and missing resolution options is a common issue. This often stems from WinPE's minimalistic nature, as it typically uses generic display drivers that might not fully support your display's native resolution or advanced graphics settings.
    • Here's what you should consider:
      • WinPE and Display Drivers: WinPE images generally do not include a full set of display drivers. They rely on basic drivers for compatibility across a wide range of hardware. This means advanced display features, including the ability to change resolution, might be limited or unavailable.
      • UEFI vs. Legacy Boot: The behavior of WinPE regarding screen resolution can differ between UEFI and Legacy BIOS boot modes. In some UEFI environments, the screen resolution is determined by the Graphics Output Protocol (GOP) and might be fixed once WinPE boots.
      • Integrating Drivers: For specific hardware, it might be possible to integrate display drivers into the WinPE image itself. This is an advanced process and typically involves using tools from the Windows Assessment and Deployment Kit (ADK) to customize the boot.wim file. However, even with integrated drivers, some users report issues.
  • GOP
    • Changing the Graphics Output Protocol (GOP) resolution directly in UEFI is a complex topic, and it's not something you typically "change" in the same way you would adjust display settings in a running operating system. Here's a breakdown of what GOP is and why it's so difficult to modify:
    • What is GOP?
      • The Graphics Output Protocol (GOP) is a core part of UEFI firmware. It's designed to replace the older Video BIOS (VBIOS) found in legacy BIOS systems. Essentially, GOP provides a standardized way for the UEFI firmware and early boot processes to display graphics on your screen before the operating system's full graphics drivers load.
    • Key characteristics of GOP:
      • Pre-OS Display: It's responsible for displaying the manufacturer's logo, BIOS/UEFI setup screens, and early boot messages.
      • Driver Replacement: It replaces the need for a separate VBIOS by providing a protocol that UEFI applications can use to draw directly to a hardware frame buffer.
      • Integrated into VBIOS/Firmware: The GOP driver itself is usually embedded within the graphics card's VBIOS (Video BIOS) or the motherboard's UEFI firmware.
    • Why is it difficult to change GOP resolution?
      • Firmware-Dependent: The available GOP resolutions are determined by your motherboard's UEFI firmware and your graphics card's VBIOS. These are often hardcoded and limited to a few standard resolutions (e.g., 800x600, 1024x768).
      • Generic Drivers: WinPE, being a minimal environment, relies on these generic GOP modes. It doesn't load a full suite of display drivers that would allow for dynamic resolution changes.
      • No User Interface: There's typically no user-friendly interface within the UEFI firmware itself to change the active GOP resolution directly. You might find a setting to switch between "UEFI" and "CSM" (Compatibility Support Module, which enables legacy BIOS features), but not to pick a specific GOP resolution.
      • Security and Stability: Modifying the underlying firmware (VBIOS or motherboard UEFI) to force a different GOP resolution carries significant risks, including potentially bricking your hardware if done incorrectly.





Published in Applications
Read more...
Thursday, 17 July 2025 13:16

My Crashed MariaDB Server Notes

This is just a temporary article for these notes, I might move them.

Extract all failed tables from the error log with Notepad++

  • Get Setup
    • Download the error log from:
      /var/lib/mysql/server.quantumwarp.com.err
    • Open the log file in Notepad++
  • Remove all lines without Table errors
    • Open the Replace dialogue (Ctrl + H)
    • Configure as follows:
      • Find what:
        ^(?!.*\[ERROR\] mariadbd: Table).*\r?\n
      • Replace with: nothing
      • Search Mode:
        • Regular expression
        • without `. matches newline`
      • Click Replace All
  • Make the lines Uniform
    • Start of the line
      • Open the Replace dialogue (Ctrl + H)
      • Configure as follows:
        • Find what:
          .*\[ERROR\] mariadbd: Table '\.
        • Replace with: nothing
        • Search Mode:
          • Regular expression
          • without `. matches newline`
      • Click Replace All
    • End of the line (optional)
      • Open the Replace dialogue (Ctrl + H)
      • Configure as follows:
        • Find what:
          ' is marked as crashed and should be repaired$
        • Replace with: nothing
        • Search Mode:
          • Regular expression
          • without `. matches newline`
      • Click Replace All
  • Sort the lines
    • Edit --> Line Operations --> Remove Duplicate Lines
    • Edit --> Line Operations --> Sort Lines Lexicographically Ascending
Published in MySQL
Read more...
Saturday, 31 May 2025 14:52

My Notepad++ Notes

Throughout these examples I have used the regex YourCodeHere to and you should change this to match your needs

Line Operations

Using a capture Group

Find:   ^.*YourCodeHere(.*)
Replace:  YourCodeHere\1

Add to the end of a line

  • Open the Replace dialogue (Ctrl + H)
  • Configure as follows:
    • Find what: $
    • Replace with: your content
    • Search Mode:
      • Regular expression
      • without `. matches newline`
  • Click Replace All

Notes

Multiline Search and Replace

Delete Specific lines

A couple of methods to identify lines and delete them.

Regex

  • Open the Replace dialogue (Ctrl + H)
  • Configure as follows:
    • Find what:
      .*YourCodeHere.*\n
.*YourCodeHere.*\r?\n
    • Replace with: nothing
    • Search Mode:
      • Regular expression
      • without `. matches newline`
  • Click Replace All

Notes

  • The end of line character should be \n if straight from your Linux box, but you might just want to check this as it could be \r\n
  • YourCodeHere should be swapped for something on each of the lines you want to delete.
  • Notepad++ Delete Lines with Find & Replace - Super User
    • some useful end of line regex that might still be valid.

Bookmark Line Method

Delete all lines that don't contain ....

A couple of methods to identify lines and delete all the others.

Inverse Regex Replace

  • Open the Replace dialogue (Ctrl + H)
  • Configure as follows:
    • Find what:
      ^(?!.*YourCodeHere).*\r?\n
^(?!.*YourCodeHere).*\R

# When this is used, blank lines are left
^((?!YourCodeHere).)*$
    • Replace with: nothing
    • Search Mode:
      • Regular expression
      • without `. matches newline`
  • Click Replace All

Bookmark Line Method

  • Select the Mark tab from the replace dialogue (Ctrl + H)
  • Enter your Regex to match code on the lines you want to keep.
    YourCodeHere

# This will allow marking of all lines not containing [ERROR]
^((?!YourCodeHere).)*$
    • Your Regex does not need to match all of the content on the line, just something unique to allow identification.
  • Check Bookmark line.
  • Search Mode:
    • Regular expression
    • without `. matches newline`
  • Click Mark All.
  • Menu --> Search --> Bookmark --> Remove Non-Bookmarked Lines
  • In the replace dialogue, Mark tab, click Clear all marks.

Remove Duplicate Lines

  • Method 1
    • Edit --> Line Operations --> Remove Duplicate Lines
    • Edit --> Line Operations --> Sort Lines Lexicographically Ascending (this is optional but makes them easier to read.)
  • Method 2
    • Edit --> Line Operations --> Sort Lines Lexicographically Ascending
    • Edit --> Line Operations --> Remove Consecutive Duplicate Lines

Delete the first part of a line

Find:   ^.*YourCodeHere
Replace:  YourCodeHere

or

Find:   ^.*?YourCodeHere
Replace:  YourCodeHere

Line Endings (EOL / CR / LF)

A collection of hints and tips of this topic.

  • The default Notepad++ font `Courier New` does not support a lot of Unicode characters such as the CRLF character.
  • Notepad++ End of Line: How to Change It and Why - Notepad++ end of line settings: Learn how to change the end of line character in Notepad++. This article includes step-by-step instructions and screenshots.

To View Line Endings in Notepad++:

  1. Go to View > Show Symbol > Show End of Line
    • CR LF for Windows line endings
    • LF for Unix-style
    • CR for old Mac-style
    • This will display actual newline characters:
    • These aren’t shown as ↵, but they indicate the same thing.

If you want ↵ to Show where Newlines Occur:

Notepad++ supports showing newlines as CR/LF/CRLF but does not support showing newlines as ↵, however you can simulate it:

  1. Use Find and Replace (Ctrl+H)
    • Set Search Mode to Extended
    • Find: \r\n or \n
    • Replace with: ↵\r\n (this will visually insert ↵ at line breaks)
    • Be careful—this alters the file.

Regex

Themes

Misc

How to add a TPL file to Notepad++ as a PHP file

  1. Click Settings / Style Configurator
  2. Select PHP in the left list box
  3. At the bottom of the list boxes, you'll see User Ext:. Enter tpl into that box
  4. Click Save & Close

Now Notepad++ will recognise .tpl files as PHP files. When you open the next one, it will contain syntax highlighting.

A question mark or a box is shown instead of the EOL character?

  • I am using the Fira Code here for this example but this will apply to all fonts where this occurs
  • The EOL character is shown when using the DejaVu Mono font.
  • The question mark character is shown is when the required glyph does not exist in the current font.
  • When copying text, the glyph references are copied not the characters, so if a character does not show correctly in one application this does not mean this will be the same in another.

The issue you're encountering is due to the Fira Code font not supporting the ↵ character (Unicode U+21B5: "DOWNWARDS ARROW WITH CORNER LEFTWARDS").

Here's a breakdown of what's going on:

  • ✅ DejaVu Mono
    • DejaVu Mono is a very complete font that includes a wide range of Unicode symbols, including many technical and typographic ones.
    • It supports the ↵ character, so it displays correctly.
  • ❌ Fira Code
    • Fira Code is a monospaced programming font known for its ligatures (like turning != into a neat symbol), but it has a more limited set of Unicode glyphs compared to DejaVu Mono.
    • It does not include a glyph for ↵, so Notepad++ shows a replacement character (typically a question mark or a box), indicating a missing glyph.

Solutions or Workarounds

  1. Use a different symbol:
    • You can try using a visually similar symbol that Fira Code does support (e.g., ↩, ↓, or ⏎), though it’s not the same.
  2. Use a different font:
    • If Unicode coverage is important and you're dealing with many special characters, consider using a font like:
      • JetBrains Mono
      • Cascadia Code
      • DejaVu Mono
      • DejaVu Sans
      • Segoe UI Symbol
      • Arial Unicode MS
    • Use a custom build of Fira Code with extended Unicode coverage (more advanced).
  3. Use a different editor:
    • Switch to a different editor that supports font fallback (like VS Code, Sublime Text, etc.).

To Verify a Character is supported in a font

You can test if Fira Code supports a character by:

  • Checking it in a font viewer (like BabelMap or FontDrop).
  • Viewing it in a browser with Fira Code explicitly set as the font.
  • Set your editor to use the required font, then copy and paste in the character from somewhere it is shown correctly.

Why ↵ works in VS Code but Not in Notepad++

VS Code and Notepad++ handle fonts very differently, particularly when it comes to missing glyphs:

  • ✅ VS Code: Font Fallback Support
    • VS Code uses Electron/Chromium, which supports font fallback.
    • When Fira Code doesn't include a glyph (like ↵), VS Code will automatically fall back to another installed font that does support it (e.g., DejaVu Sans Mono or Segoe UI Symbol).
    • So even though Fira Code doesn’t include ↵, VS Code silently substitutes it from another font.
  • ❌ Notepad++: No Font Fallback
    • Notepad++ uses the Windows GDI or Scintilla rendering engine, which lacks proper font fallback.
    • If the selected font (Fira Code) doesn’t include a glyph, Notepad++ simply shows a replacement character (usually a box or question mark), because it won’t switch to another font.

✅ Summary

App Font Used ↵ Glyph Supported by Font? Font Fallback? Result
VS Code Fira Code ❌ ✅ Yes ✔️ Displays ↵
Notepad++ Fira Code ❌ ❌ No ❌ Question mark

Additional Fonts



ChatGPT Code Clean up

Using the regex below and Notepad++ remove the tag data and then remove unwanted paragraphs in list items allowing for correctly formatted information in my articles.

TL;DR

All the methods work but if in doubt use these:

  • Remove <article> & </article> tags
  • Remove unwanted tag data: Method 2
  • Remove Nested <p>...</p>: Method 1

Remove all of the unwanted tag data

These regex simply removed unwanted style and data-start="" and data-end="" meta values from all html elements (eg: <ul data-start="1463" data-end="1764"> --> <ul>)

Method 1
  • This will require a WYSIWYG to remove the unneeded white space.
    • TinyMCE will remove the white space by pasting the into the code window and then returning to the normal edit window. Once this is done you can recopy the code from TinyMCE.
    • this needs to be done before running any more Regex on the code.
  • The regex code only needs to be run once.
  • Regular expression, no `. matches newline`
Find what: ( data-start="[0-9]+"| data-end="[0-9]+")

Replace with:
Method 2
  • This will handle self closed tags
  • The regex code only needs to be run once.
  • This will always find matches even if all the elements/tags are empty and nothing needs to be removed.
  • Regular expression, no `. matches newline`
Find what: <([a-z0-9]+).*?( ?/)?>

Replace with: <\1\2>
 Method 3
  • This will handle self closed tags
  • The regex code only needs to be run once.
  • This will always find matches even if all the elements/tags are empty and nothing needs to be removed.
  • The downside of this is that you need to add every element.
  • Regular expression, no `. matches newline`
Find what: <(h1|h2|h3|h4|h5|h6|pr?e?|br|hr|ul|ol|li|strong|code|em){1}.*?( ?/)?>

Replace with: <\1\2>

Remove Nested <p>...</p> Tags from <li>...</li> but keep all Content

  • To remove all p tags nested within <li></li> tags with a single replace operation in Notepad++, use a regex that captures all the content between a <li> and </li> tag and then replaces the nested <p> and </p> tags.
  • These finds all <li><p>...</p> and removes the <p></p>
  • These will find and remove the <p> tags while preserving their content, but only when they are within <li> tags.
  • This regex needs to be run until all matches are found and replaced as it might not be able to do all changes on the first run. Multiple <p></p> in a <li></li> will require additional runs.
  • Regular expression, no `. matches newline`
Method 1
  • Regular expression, no `. matches newline`
Find what: (<li>[\s\S]*?)<p>([\s\S]*?)</p>([\s\S]*?</li>)

Replace with: \1\2\3

Explanation of the Regex

  • (: Starts a capturing group.
  • <li>: Matches the literal opening <li> tag.
  • [\s\S]*?: Matches any character (\s for whitespace, \S for non-whitespace) zero or more times, non-greedily. This captures everything between the <li> and the <p> tag.
  • )</p>: This ends the first capturing group and literally matches the opening <p> and closing </p> tags.
  • ([\s\S]*?): This is the second capturing group, which matches the content inside the <p> tags.
  • ([\s\S]*?</li>): This is the third capturing group, which matches everything from the closing </p> tag up to the closing </li> tag.
  • \1\2\3: In the "Replace with" field, these refer to the content of the three capturing groups. This tells Notepad++ to reconstruct the text using the parts it captured, effectively removing the <p> tags.

Make sure you have Regular expression selected in the "Search Mode" area of the Find and Replace dialog.

Method 2
  • Regular expression, no `. matches newline`
Find What: (<li>[\s\S]*?)<p>(.*?)<\/p>(?=[\s\S]*?<\/li>)

Replace with: $1$2

Explanation of the Regex

This regex uses a combination of capturing groups and a positive lookahead to find and replace all instances within a single pass.

  • ( and ): These create a capturing group. ( starts the group, and ) ends it.
  • <li>: Matches the literal opening <li> tag.
  • [\s\S]*?: This non-greedy pattern matches any character (including newlines) zero or more times, capturing everything after the <li> tag.
  • )*?): The first capturing group ends here. This group captures the content from the opening <li> tag up to the first <p> tag.
  • <p>: Matches the literal opening <p> tag.
  • (.*?): This is the second capturing group. It non-greedily matches all content within the <p> tags.
  • <\/p>: Matches the literal closing </p> tag.
  • (?=[\s\S]*?<\/li>): This is a positive lookahead. It asserts that the matched pattern is followed by a closing </li> tag. The [\s\S]*? matches any character zero or more times until it finds a </li> tag.

When you use $1$2 in the "Replace with" field, Notepad++ will replace the entire matched string with the content of the first and second capturing groups, effectively removing the <p> tags while preserving their content and the surrounding li structure.

Important: Make sure Regular expression is selected in the Search Mode section of the Find and Replace dialog. You may also need to check the . matches newline box.

Method 3 + 4
  • These all assume that there is only one <p>...</p> in each <li>...</li> and are here for reference only.
  • Regular expression, no `. matches newline`
## Remove the first nested <p>
Find what   : <li>[\r?\n?]+<p>
Replace With: <li>

## Remove the last nested</p>
Find what   : </p>[\r?\n?]+</li>
Replace With: </li>

## Remove the first pair of nested <p>...</p>
Find what   : <li>\s*(?:<p>(.*?)</p>\s*)+</li>
Replace With: <li>\1</li>

Remove <article> &</article> tags

  • These 2 commands will remove all of the <article> tags, but not their content.
  • Regular expression, no `. matches newline`
## Remove all <article>
Find what   : <article.*>
Replace With:

## Remove all </article>
Find what   : </article>
Replace With:





Published in Applications
Read more...
Page 1 of 96
